RM15
MANUFACTURER: ROXTEC
NOTE: MINIMUM ORDER 5 UNITS
NORMALLY SHIPS SAME BUSINESS DAY (M-F) IF ORDER IS PLACED BY 2PM PACIFIC TIME
DESCRIPTION:

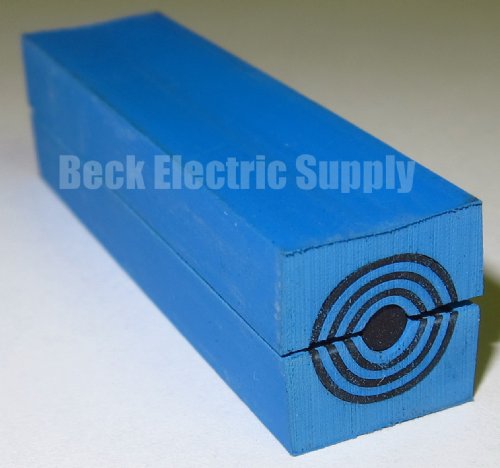

ROXTEC RM00100151000, RM MODULE WITH CORE, MULTIDIAMETER MODULE, 15MM X 15MM X 60MM (HxWxD), CABLE PIPE DIAMETER (0+ 3.0-11.0MM) (0+ 0.118-0.433IN.)
A ROXTEC MULTIDIAMETER RM MODULE CONSISTS OF TWO HALVES WITH REMOVABLE LAYERS AND A SOLID CENTER CORE. THIS TECHNOLOGY ENABLES THE USER TO SEAL CABLE OR PIPE OF SEVERAL DIFFERENT DIAMETERS BY PEELING AWAY LAYERS FROM THE MODULE HALVES. THIS RESULTS IN A PERFECT FIT. THE ROXTEC MULTIDIAMETER MODULES ARE USED IN CONJUCTION WITH A FRAME AND A COMPRESSION UNIT. ROXTEC HAS INVENTED A SYSTEM USING A TIME SAVING COMPRESSION UNIT THAT MAKES RETROFITS POSSIBLE. THE END RESULT IS A SEALING SOLUTION FOR ANY APPLICATION.
ROXTEC ONBOARD MEANS SAFETY AND LONG-TERM OPERATIONAL RELIABILITY. SHIPBUILDERS AND SHIP OWNERS STANDARDIZE WITH OUR CABLE AND PIPE TRANSITS. WE PROVIDE THE SEALING SOLUTION WITH THE LARGEST NUMBER OF TESTS AND CERTIFICATIONS IN THE INDUSTRY.
APPROVED FOR A-CLASS RATED SECTIONS, THE SEALS HANDLE FIRE, WATER, PRESSURE, THERMAL BRIDGES, AND MATERIAL FATIQUE. THEY FIT CABLES, METAL PIPES, PLASTIC PIPES AND CAN BE OPENED REPEATEDLY. ADD A CABLE WITHOUT STRUCTURAL INTERVENTION.
CERTIFICATES & RATINGS:
UL
CSA
FM APPROVED
FIRE RATINGS (A-0, A-15, A-30, A-60)
SIZE:
HEIGHT: 15MM WIDTH: 15MM
DEPTH: 60MM
WEIGHT:
.045 LBS.
NOTE: THIS PRODUCT IS PACKAGED 64 UNITS PER BOX, HOWEVER WE SELL THEM INDIVIDUALLY.
THUS - IF YOU ORDER QTY 32, YOU WILL RECEIVE 32 INDIVIDUAL BLOCKS, NOT 32 BOXES OF 64.
