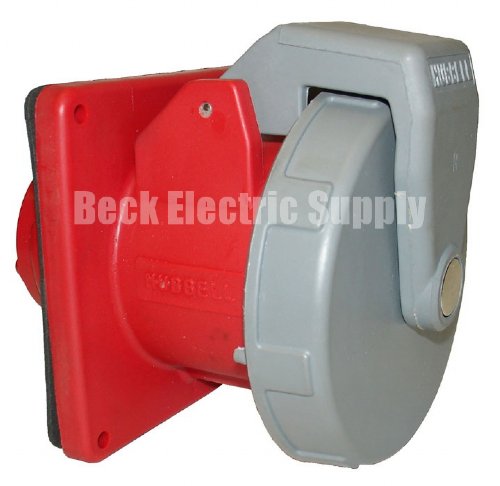

RECEPTACLE 60AMP 480VAC 3PH 3P4W HUBBELL HBL460R7W

HBL460R7W

MANUFACTURER: HUBBELL

DESCRIPTION: HUBBELL RECEPTACLE
60AMP 480VAC 3-POLE 4-WIRE
3 PHASE
PIN AND SLEEVE

FEATURES:
WATERTIGHT
INSULATED NON-METALLIC HOUSING
SUPER TOUGH
NON-CONDUCTIVE

MATERIALS:
HOUSING & MOUNTING FLANGE - ZYTEL 101 NYLON
ARM SPRING - STAINLESS STEEL
COVER & COVER ARM - RYNITE SST35
COVER SCREW - NICKEL PLATED BRASS
ROTATING SEALING DISC - POLYCARBONATE
GASKETS - SOLID NEOPRENE
MOUNTING & TERMINAL SCREWS - STAINLESS STEEL
PHASE, GROUND SLEEVES - BRASS
SLEEVE SPRING - STAINLESS STEEL

UL LISTED
CSA LISTED
IP67 SUITABILITY
MEETS IEC 60309-1 AND IEC 60309-2

WEIGHT: 4 LBS EACH
