HBL2510
MANUFACTURER: HUBBELL
DESCRIPTION:

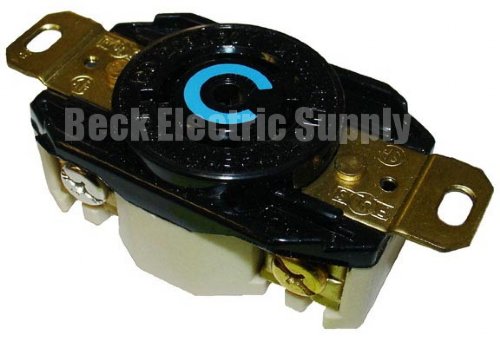

HUBBELL TWIST-LOCK SINGLE RECEPTACLE
20AMP 120/208VAC 4-POLE 5-WIRE
NEMA L21-20
HIGH IMPACT, ABUSE RESISTANT NYLON FACE
ALL BRASS GROUNDING & MOUNTING SYSTEM FOR LOWER RESISTANCE GROUND PATH & GREATER RESISTANCE TO CORROSION
FACE COLOR CODING BY VOLTAGE
WIRE RESTRAINT RECESS FOR BOTH BACK & SIDE WIRING
GLASS REINFORCED THERMOPLASTIC POLYESTER BASE
ONE PIECE CONTACT WITH LONG SPRING ARM
#10 SILICON BRONZE TERMINAL SCREW PROVIDES GREATER STRENGTH & RESISTANCE TO CORROSION & STRIPPING
APPROVALS:
UL LISTED
CSA LISTED
UL FED SPEC
IP20 SUITABILITY
WEIGHT: .302 LBS.
