MANUFACTURER: HUBBELL
DESCRIPTION:

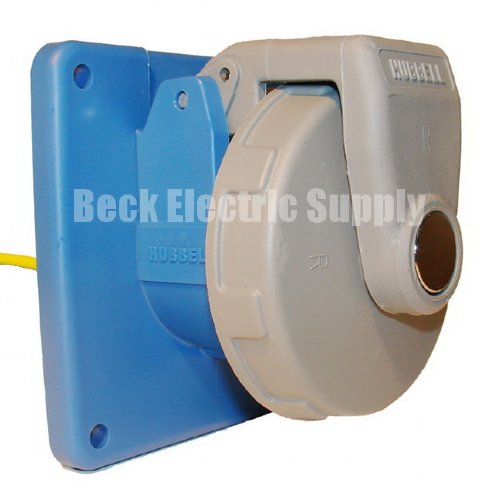

HUBBELL RECEPTACLE
20AMP 250VAC 2-POLE 3-WIRE
PIN AND SLEEVE
FEATURES:
WATERTIGHT
INSULATED NON-METALLIC HOUSING
SUPER TOUGH
NON-CONDUCTIVE
MATERIALS:
HOUSING & MOUNTING FLANGE - ZYTEL 101 NYLON
ARM SPRING - STAINLESS STEEL
COVER & COVER ARM - RYNITE SST35
COVER SCREW - NICKEL PLATED BRASS
ROTATING SEALING DISC - POLYCARBONATE
GASKETS - SOLID NEOPRENE
MOUNTING & TERMINAL SCREWS - STAINLESS STEEL
PHASE, GROUND SLEEVES - BRASS
SLEEVE SPRING - STAINLESS STEEL
UL LISTED
IP67 SUITABILITY
MEETS IEC 60309-1 AND IEC 60309-2
WEIGHT: .92 LBS EACH
