ADR1034
MANUFACTURER: APPLETON
NORMALLY SHIPS SAME BUSINESS DAY (M-F) IF ORDER IS PLACED BY 2PM PACIFIC TIME
DESCRIPTION:

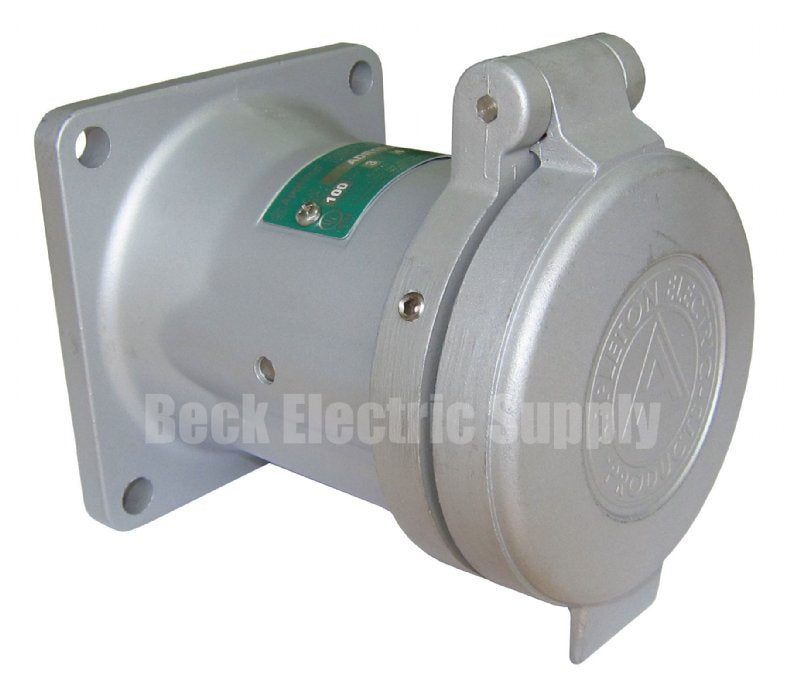

APPLETON RECEPTACLE (PANEL MOUNT FEMALE)
100 AMP, 600V AC, 250V DC, 50–400HZ, 4-POLE, 3-WIRE
POWERTITE SERIES PIN AND SLEEVE
EPOXY POWDER COAT NON-CORROSIVE COPPER FREE ALUMINUM HOUSING
RECEPTACLES ARE PROVIDED WITH BOTH SPRING COVER & SCREW CAP
PRESSURE WIRE TERMINALS
WIRE RECESS DIAMETER .391
WIRE SIZE RANGE: #4 - #1 BUILDING, #4 - #2 EXTRA FLEX
PLUG CABLE DIAMETER RANGE .875 – 1.906 INCHES OD
NEMA 3, 3R, 4, 4X
RATED NEMA 4X WHEN MATED TO PLUG WITH FULLY TIGHTENED CLAMPING RING
RATED NEMA 4X WHEN SCREW CAP IS CLOSED & RECEPTACLE NOT IN USE
GROUNDING: STYLE 2 (SHELL AND EXTRA POLE)
SOLID BRASS CONTACTS WITH BERYLLIUM COPPER SPRINGS
RECEPTACLE INCLUDES RUBBER FLANGE GASKET AND 4 BOLTS
SAFETY:
POSITIVE POLARIZATION: ONLY PLUGS & RECEPTACLES OF SAME STYLE, NUMBER OF POLES AND AMPERE RATING CAN BE USED TOGETHER
CONTROLLED LENGTH CONTACTS ENSURE THAT GROUND MAKES FIRST AND BREAKS LAST FOR ADDED SAFETY
TWO DETENT SPRING CLIPS ENGAGE THE GROUNDED PLUG HOUSING ON PLUG INSERTION-GROUNDED PLUG SHELL MAKES CONTACT WITH RECEPTACLE GROUND SPRING BEFORE LINE AND LOAD POLES ARE ENGAGED. GROUNDING PATH IS MAINTAINED UNTIL AFTER CURRENT CARRYING CONTACTS DISENGAGE. ALL CONTACTS ARE "CURRENT CARRYING”.
APPLICATIONS:
DESIGNED TO SUPPLY POWER TO PORTABLE OR FIXED ELECTRICAL
EQUIPMENT SUCH AS MOTOR GENERATOR UNITS, WELDERS, PUMPS,
COMPRESSORS, CELLULAR RELAY STATIONS AND SIMILAR APPARATUS.
IDEAL FOR USE ON SHIPPING DOCKS, PORTS, AND OTHER SHIP TO SHORE
AND SHORE POWER APPLICATIONS. BACKUP / TEMPORARY POWER APPLICATIONS.
SUITABLE FOR USE IN LOCATIONS WHERE A WEATHERPROOF ENCLOSURE
IS REQUIRED
CERTIFICATIONS:
UL STANDARD: UL1682, UL1686, UL50E
UL LISTED: E145916, E145917
CSA STANDARD: C22.2 NO. 182.1-13
CSA CERTIFIED: 065179
NEMA 4X
NEMA CONFIGURATION: FB11
WEIGHT: 3.9 LBS
