E430P7W
MANUFACTURER: ESL POWER SYSTEMS
DESCRIPTION:

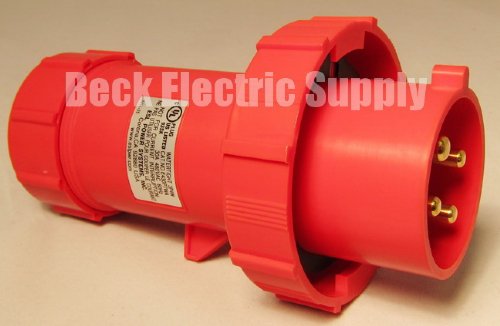

ESL MALE PLUG
30AMP 480VAC 60HZ 3P4W (3 POLE, 4 WIRE)
FEATURES:
IEC 309 (7H CONFIGURATION)
WATERTIGHT
NON-METALLIC
HEAVY DUTY DESIGN FOR HARSH MARINE ENVIRONMENT
BACK LOADED – EASY INSTALLATION
ONE TERMINATION SCREW PER POLE
UL LISTED
MATERIALS:
BODY – POLYAMID RED (NON-METALLIC)
LOCKING RING – POLYAMID RED
GLAND RING – POLYAMID RED
INSERT – PHENOLIC BLACK
INNER SLEEVE – POLYAMID BLACK
CONTACT PINS – BRASS
GASKETS – POLYCHLOROPRENE
CABLE GROMMET – NEOPRENE
O-RINGS – BUNA-N
APPROVALS:
UL LISTED
ENVIRONMENTAL:
IPX7 PER IEC 529 / IEC 309-1
TYPE 4X CAPABLE
7H CONFIGURATION PER IEC 309 ½
TERMINALS:
(3) PHASE & (1) GROUND PRESSURE TYPE M6 SCREW TERMINALS (1 PER POLE)
ACCEPT #12-#8AWG (2.5 – 10MM) CONDUCTORS
WARNING:
THIS UNIT WILL NOT ACCEPT #8/4 TYPE W CORD DUE TO JACKET THICKNESS
WEIGHT: .89 LBS.
