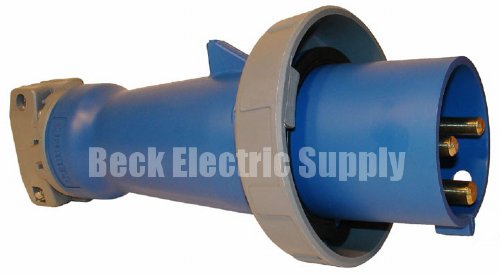

PLUG 60AMP 250VAC 2-POLE 3-WIRE HUBBELL HBL360P6W

HBL360P6W

MANUFACTURER: HUBBELL

DESCRIPTION:
HUBBELL PLUG
60AMP 250VAC 2-POLE 3-WIRE
PIN AND SLEEVE

FEATURES:
WATERTIGHT
INSULATED NON-METALLIC HOUSING
SUPER TOUGH
NON-CONDUCTIVE
WATERTIGHT NEOPRENE SEALING GLANDS
PINS ARE RECESSED IN SHROUDING FOR PROTECTION
BOX TERMINALS PERMIT HIGHER CLAMPING PRESSURE ON
CONDUCTORS
HEAVY DUTY CABLE GRIPS

MATERIALS:
HOUSING - ZYTEL 101 NYLON
LOCKING RING, CORD CLAMP, GLAND CAP – RYNITE SST35
GLAND & SEALING GASKET - SOLID NEOPRENE
CORD CLAMP & GLAND CLAMP SCREWS - STAINLESS STEEL
CLAMP NUT - NICKEL PLATED BRASS
CONTACT CARRIER & RETAINER - HIGH IMPACT THERMOSET
GROUND & PHASE PINS - SOLID BRASS
TERMINAL & ASSEMBLY SCREWS - STAINLESS STEE

UL LISTED
IP67 SUITABILITY
MEETS IEC 60309-1 AND IEC 60309-2

WEIGHT: 2.20 LBS EACH
