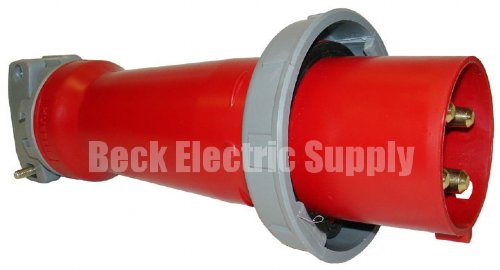

PLUG 100A 480VAC 3PH 3-POLE 4-WIRE HUBBELL HBL4100P7W

HBL4100P7W

MANUFACTURER: HUBBELL

DESCRIPTION:
HUBBELL PLUG
100AMP 480VAC 3-POLE 4-WIRE
3-PHASE
PIN AND SLEEVE

FEATURES:
WATERTIGHT
INSULATED NON-METALLIC HOUSING
SUPER TOUGH
NON-CONDUCTIVE
WATERTIGHT NEOPRENE SEALING GLANDS
PINS ARE RECESSED IN SHROUDING FOR PROTECTION
BOX TERMINALS PERMIT HIGHER CLAMPING PRESSURE ON
CONDUCTORS
HEAVY DUTY CABLE GRIPS

MATERIALS:
HOUSING - ZYTEL 101 NYLON
LOCKING RING, CORD CLAMP, GLAND CAP - RYNITE SST35
GLAND & SEALING GASKET - SOLID NEOPRENE
CORD CLAMP & GLAND CLAMP SCREWS - STAINLESS STEEL
CLAMP NUT - NICKEL PLATED BRASS
CONTACT CARRIER & RETAINER - HIGH IMPACT THERMOSET
GROUND & PHASE PINS - SOLID BRASS
TERMINAL & ASSEMBLY SCREWS - STAINLESS STEEL

UL LISTED
IP67 SUITABILITY
MEETS IEC 60309-1 AND IEC 60309-2

WEIGHT: 5 LBS EACH
