1706-56ANP
MANUFACTURER: ESL
NORMALLY SHIPS SAME BUSINESS DAY (M-F) IF ORDER IS PLACED BY 2PM PACIFIC TIME
DESCRIPTION:

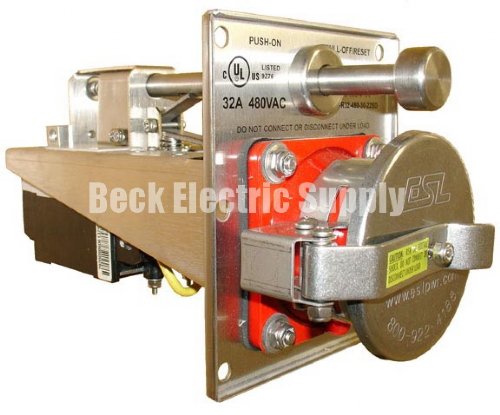

ESL INTERLOCKED POWER MODULE
32AMP 480VAC
60HZ
30A TRIP / 35,000AIC @480V CIRCUIT BREAKER
STAINLESS STEEL CONSTRUCTION
"POWER ON" LED INDICATOR LIGHT (SHOWN AS ENERGIZED)
FEATURES:
HEAVY DUTY STAINLESS STEEL CONSTRUCTION (FRAME, ROD, INTERLOCK MECHANISM, TERMINAL SCREWS & SPRING, SNAP COVER & ALL HARDWARE)
UL LISTED CIRCUIT BREAKER PROTECTS OPERATOR & EQUIPMENT
NICKEL PLATED BRASS CONTACTS
"POWER ON" LED INDICATOR LIGHT (SHOWN AS ENERGIZED)
RATING:
IP67 PER IEC 529 / IEC 309-1 WITH MATED PLUG OR SCREW COVER
TYPE 4X CAPABLE PER NEMA 250, UL 50/508, CSA 22.2
APPROVALS:
UL / CUL LISTED MODULE
UL 489 LISTED
CSA CERTIFIED MOLDED CASE CIRCUIT BREAKER
DIMENSIONS:
WIDTH: 5.20" (FACE PLATE)
HEIGHT: 6.15" (FACE PLATE)
DEPTH: 11.53"
WEIGHT: 6.20 LBS.
