2632B-125
MANUFACTURER: PAULUHN / EATON / CROUSE-HINDS
NORMALLY SHIPS SAME BUSINESS DAY (M-F) IF ORDER IS PLACED BY 2PM PACIFIC TIME
DESCRIPTION:
PROCONNECT-PS 263/MW

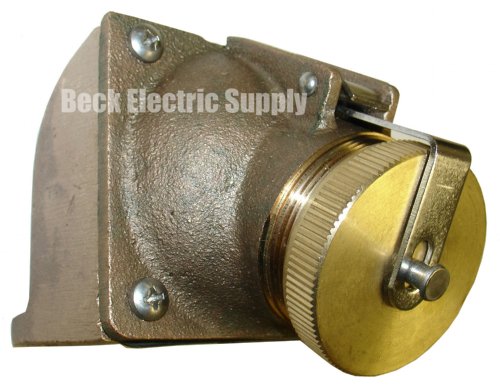

MARINE WATERTIGHT RECEPTACLE 1-GANG, ANGLED, BRONZE, SURFACE MOUNT
FURNISHED WITH ONE INTERIOR FOR RECEPTACLE (INX3022-125), 20 AMP, 2-POLE 3-WIRE, 125VAC, PIN AND SLEEVE TYPE, SOLID BRASS INSERTS AND SCREW TERMINALS, YELLOW, FURNISHED WITH GASKET AND STAINLESS STEEL SCREWS
RECEPTACLE ACCEPTS 420PP-125 OR 420BP-125 PLUG
HOUSING:
HEAVY GRADE MARINE GRADE BRONZE (UNITS HAVE NATURAL FINISH CASTINGS)
HARDWARE:
STAINLESS STEEL
OUTLETS:
ALL UNITS ARE FURNISHED BLANK BUT CAN BE SUPPLIED WITH UP TO TWO 3/4" NPT OUTLETS
APPROVALS:
USCG
ABS - AMERICAN BUREAU OF SHIPPING
TYPE 4X
APPLICATIONS:
MARINE & WET ENVIRONMENTS
OFFSHORE OIL & GAS PLATFORMS
DRILL SHIPS & EXPLORATION VESSELS
TANKERS
FERRIES / PASSENGER SHIPS
DIMENSIONS:
WIDTH: 3-11/16"
HEIGHT: 2-15/16"
DEPTH: 4-1/4" (FROM FLAP COVER)
WEIGHT: 2-3/4 LBS.
PLEASE CALL FOR OPTIONS AND ACCESSORIES
