2614BU-125
MANUFACTURER: PAULUHN / EATON / CROUSE-HINDS
NORMALLY SHIPS SAME BUSINESS DAY (M-F) IF ORDER IS PLACED BY 2PM PACIFIC TIME
DESCRIPTION:
PROCONNECT 26B/MW

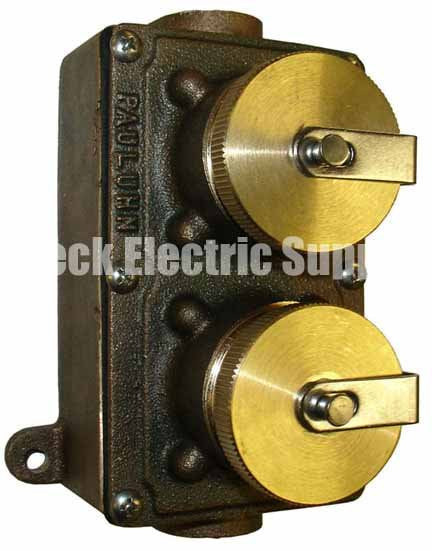

MARINE WATERTIGHT RECEPTACLE, 2-GANG, BRONZE, SURFACE MOUNT, NEMA 5-20
FURNISHED WITH 2 EACH INTERIORS FOR RECEPTACLES (INX3181), 20 AMP, 125VAC, STRAIGHT BLADE TYPE WITH U-GROUND, ACCEPTS STANDARD NEMA 5-20 HOUSEHOLD PLUGS, SOLID BRASS INSERTS AND SCREW TERMINALS, FURNISHED WITH GASKET AND STAINLESS STEEL SCREWS
HOUSING:
HEAVY GRADE MARINE GRADE BRONZE (UNITS HAVE NATURAL FINISH CASTINGS)
CAPS / RINGS:
BRASS CAPTIVE THREADED RECEPTACLE CAP
HARDWARE:
STAINLESS STEEL
OUTLETS:
ALL UNITS ARE FURNISHED BLANK, DRILL ½ INCH OR ¾ INCH NPT OUTLETS
APPROVALS:
USCG
ABS - AMERICAN BUREAU OF SHIPPING
IP66
NEMA 5-20
APPLICATIONS:
MARINE & WET ENVIRONMENTS
OFFSHORE OIL & GAS PLATFORMS
DRILL SHIPS & EXPLORATION VESSELS
TANKERS
FERRIES / PASSENGER SHIPS
DIMENSIONS:
WIDTH: 4-3/4" (BETWEEN MOUNTING HOLES)
HEIGHT: 3-15/16" (BETWEEN MOUNTING HOLES)
DEPTH: 3-13/16" (FROM FLAP COVER)
WEIGHT: 5-1/2 LBS.
PLEASE CALL FOR OPTIONS AND ACCESSORIES
