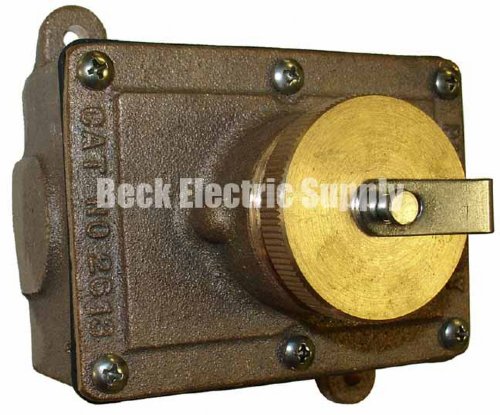

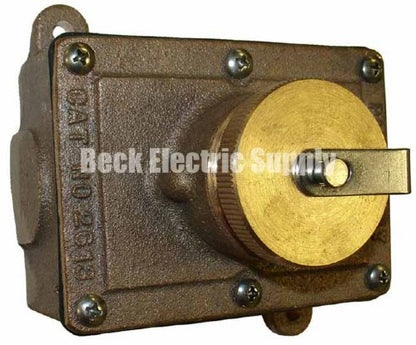

MARINE RECEPTACLE 1-GANG 20A 2P3W BRONZE PAULUHN / EATON / CROUSE-HINDS 2613B-125

2613B-125

MANUFACTURER: PAULUHN / EATON / CROUSE-HINDS

NORMALLY SHIPS SAME BUSINESS DAY (M-F) IF ORDER IS PLACED BY 2PM PACIFIC TIME

DESCRIPTION:
PROCONNECT-PS 261/MW
MARINE WATERTIGHT RECEPTACLE 1-GANG, BRONZE, SURFACE MOUNT

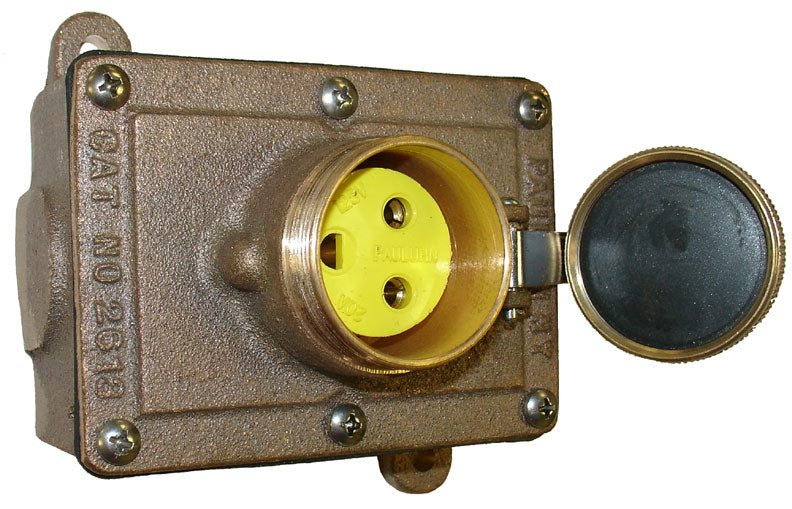

FURNISHED WITH 1 EACH INTERIOR FOR RECEPTACLE (INX3022-125), 20 AMP, 2-POLE 3-WIRE, 125VAC, PIN AND SLEEVE, SOLID BRASS INSERTS AND SCREW TERMINALS, YELLOW, FURNISHED WITH GASKET AND STAINLESS STEEL SCREWS

RECEPTACLE ACCEPTS 420PP-125 OR 420BP-125 PLUG

HOUSING:
HEAVY GRADE MARINE GRADE BRONZE (UNITS HAVE NATURAL FINISH CASTINGS)

HARDWARE:
STAINLESS STEEL

OUTLETS:
ALL UNITS ARE FURNISHED BLANK BUT CAN BE SUPPLIED WITH UP TO TWO 3/4" NPT OUTLETS

APPROVALS:
USCG
ABS - AMERICAN BUREAU OF SHIPPING
TYPE 4X

APPLICATIONS:
MARINE & WET ENVIRONMENTS
OFFSHORE OIL & GAS PLATFORMS
DRILL SHIPS & EXPLORATION VESSELS
TANKERS
FERRIES / PASSENGER SHIPS

DIMENSIONS:
WIDTH: 3-3/8" (BETWEEN MOUNTING HOLES)
HEIGHT: 4-1/16" (BETWEEN MOUNTING HOLES)
DEPTH: 3-13/16" (FROM FLAP COVER)

WEIGHT: 4 LBS.

PLEASE CALL FOR OPTIONS AND ACCESSORIES
