2583B-125
MANUFACTURER: PAULUHN / EATON / CROUSE-HINDS
NORMALLY SHIPS SAME BUSINESS DAY (M-F) IF ORDER IS PLACED BY 2PM PACIFIC TIME
DESCRIPTION:
PROCONNECT 25B/MW

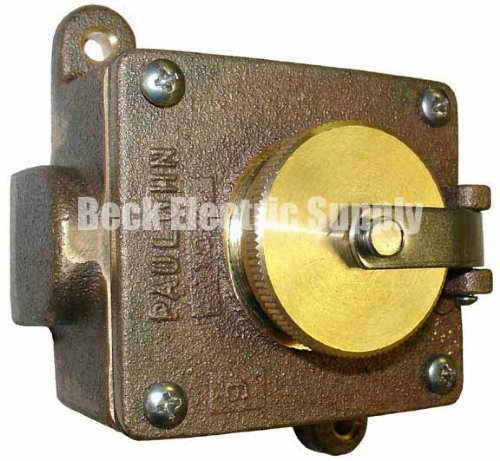

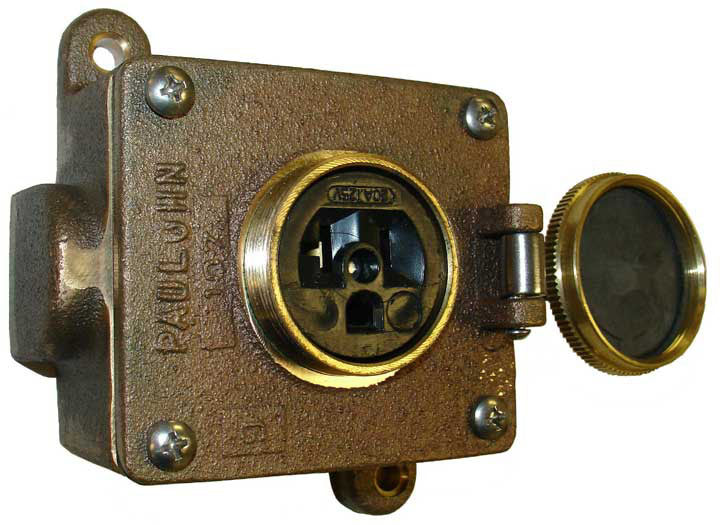

MARINE WATERTIGHT RECEPTACLE 1-GANG, 20AMP, 125VAC, 2P3W, BRONZE, SURFACE MOUNT WITH FLIP SCREW CAP
FURNISHED WITH INTERIOR FOR RECEPTACLE (INX3181), 20 AMP, 2-POLE 3-WIRE, 125VAC, STRAIGHT BLADE TYPE WITH U-GROUND, NEMA 5-20
HOUSING:
HEAVY GRADE MARINE GRADE BRONZE (UNITS HAVE NATURAL FINISH CASTINGS)
HARDWARE:
STAINLESS STEEL
OUTLETS:
ALL UNITS ARE FURNISHED BLANK BUT CAN BE SUPPLIED WITH UP TO TWO 3/4" NPT OUTLETS
APPROVALS:
USCG
NEMA 5-20
ABS - AMERICAN BUREAU OF SHIPPING
TYPE 4X
APPLICATIONS:
MARINE & WET ENVIRONMENTS
OFFSHORE OIL & GAS PLATFORMS
DRILL SHIPS & EXPLORATION VESSELS
TANKERS
FERRIES / PASSENGER SHIPS
DIMENSIONS:
WIDTH: 2-5/8" (BETWEEN MOUNTING HOLES)
HEIGHT: 3-7/8" (BETWEEN MOUNTING HOLES)
DEPTH: 2-7/8" (FROM FLAP COVER)
WEIGHT: 3 LBS.
PLEASE CALL FOR OPTIONS AND ACCESSORIES
