12/3-MARINE
DESCRIPTION:

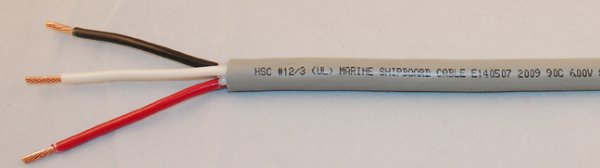

TNIU-6 MARINE SHIPBOARD CABLE, 12AWG, 3-CONDUCTOR, 600V, GREY PVC JACKET, IEEE-45, ABS / USCG / UL APPROVED
SIZE:
CONDUCTOR SIZE: 12AWG
MAX. OVERALL DIAMETER: .39
CONDUCTOR:
STRANDED ANNEALED COPPER
CLASS B STRANDING
19 STRANDS PER CONDUCTOR
ONE BLACK, ONE WHITE, ONE RED
INSULATION:
THERMOPLASTIC NYLON
JACKET:
PVC, MOISTER RESISTANT, SUNLIGHT RESISTANT
AMPACITY:
29 AMPS MAXIMUM
FLAME TEST:
IEEE 1202
APPLICATIONS:
COMMERCIAL VESSELS
WORK BOATS
TUG BOATS
FISHING BOATS
COMPLIANCES:
IEEE-45
ABS APPROVED
USCG APPROVED
UL RATED
SOLD PER FOOT
25 FOOT MINIMUM
WEIGHT: .119 LBS PER FOOT
