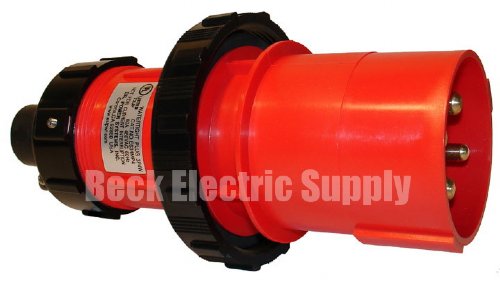

E634MP4
DESCRIPTION:
ESL MALE PLUG
60AMP 480VAC 3-POLE 4-WIRE
FEATURES:
WATERTIGHT WHEN MATED
NON-METALLIC
HEAVY DUTY DESIGN FOR HARSH MARINE ENVIRONMENTS
UL LISTED
MATERIALS:
HOUSING - RED POLYAMID (NON-METALLIC)
LOCK RING - BLACK POLYAMID
LAND RING - BLACK POLYAMID
GLAND CLAMP - STAINLESS STEEL
INSERT - PHENOLIC
CONTACT PINS - SOLID BRASS
GASKETS - POLYCHLOROPRENE
CABLE GROMMET - POLYCHLOROPRENE
O-RINGS - BUNA-N
RATING ELECTRICAL - 60A 480VAC (60HZ)
ENVIORONMENTAL - IPX7 PER IEC 529 / IEC 309-1, TYPE 4X CAPABLE
TERMINALS - 3 PHASE & 1 GROUND, PRESSURE TYPE SCREW
TERMINALS (1 PER POLE) ACCEPTS #8-#6 AWG
(10-16MM 2) CONDUCTORS
WEIGHT: 1.40 LBS EACH
