E333MP1A
NORMALLY SHIPS SAME BUSINESS DAY (M-F) IF ORDER IS PLACED BY 2PM PACIFIC TIME
DESCRIPTION:

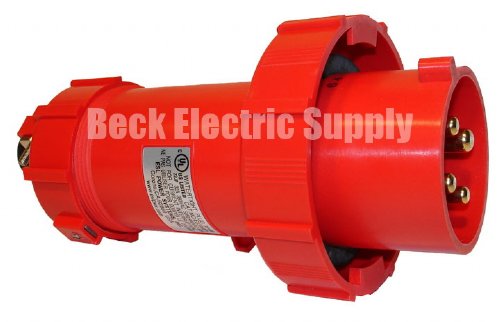

ESL MALE PLUG
32AMP 480VAC 3P4W
FEATURES:
CEE-17 3H CONFIGURATION
WATERTIGHT WITH SPECIAL GROMMET CONFIGURATION
NON-METALLIC
HEAVY DUTY DESIGN FOR HARSH MARINE ENVIRONMENT
UL LISTED, CUL LISTED
MATERIALS:
BODY - RED POLYAMID (NON-METALLIC)
CONTACT PINS - BRASS
GLAND RING - RED POLYAMID
CABLE GROMMET - RED POLYAMID
INSERT - BLACK PHENOLIC
GASKETS - POLYCHLOROPRENE
O-RINGS - BUNA-N
RATING ELECTRICAL - 32A 480VAC (380/440VAC 50/60HZ)
PER IEC 309-2 (CEE-17 3H)
ENVIRONMENTAL - IPX7 PER IEC 529 / IEC 309-1, TYPE 4X CAPABLE
TERMINALS - 3 PHASE & 1 GROUND, PRESSURE TYPE M6 SCREW
TERMINALS (1 PER POLE) ACCEPTS #12-#8 AWG
(2.5-10MM 2) CONDUCTORS
WEIGHT: 1.05 LBS EACH
