E334MP
NORMALLY SHIPS SAME BUSINESS DAY (M-F) IF ORDER IS PLACED BY 2PM PACIFIC TIME
DESCRIPTION:

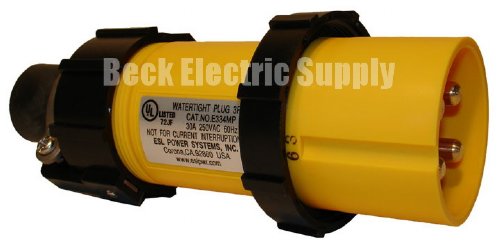

ESL MALE PLUG
30AMP 240VAC 3P4W
FEATURES:
WATERTIGHT WHEN MATED
NON-METALLIC
HEAVY DUTY DESIGN FOR HARSH MARINE ENVIRONMENT
UL LISTED
MATERIALS:
BODY - YELLOW POLYAMID (NON-METALLIC)
GLAND CLAMP - STAINLESS STEEL
CONTACT PINS - BRASS
GLAND RING - BLACK POLYAMID
LOCK RING - BLACK POLYAMID
INNER SLEEVE - BLACK POLYAMID
INSERT - BLACK PHENOLIC-
GASKETS - POLYCHLOROPRENE
CABLE GROMMET - NEOPRENE
O-RINGS -BUNA-N
RATING ELECTRICAL - 30AMP 240VAC
ENVIRONMENTAL - IPX7 PER IEC 529 / IEC 309-1, TYPE 4X CAPABLE
TERMINALS - 3 PHASE & 1 GROUND, PRESSURE TYPE M6 SCREW
TERMINALS (1 PER POLE) ACCEPTS #8-#6 AWG
(10-16MM 2) CONDUCTORS
WEIGHT: .71 LBS EACH
