LL48-60W-765
MANUFACTURER: COOPER CROUSE-HINDS
NOTE: OUT OF STOCK - THIS IS A SPECIAL ORDER ITEM, PLEASE CONTACT US FOR ADDITIONAL INFORMATION
DESCRIPTION:

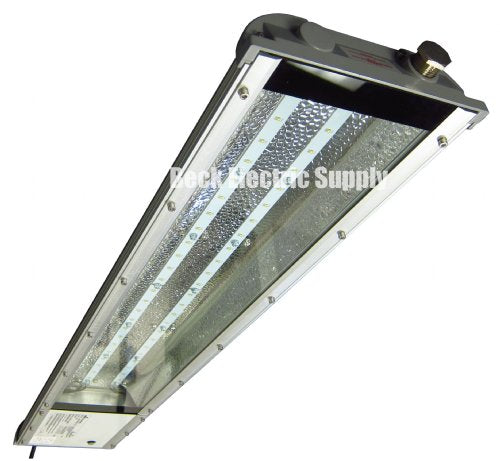

LINEAR LED FIXTURE, 56 WATTS, 100V-277V AC, 50-60HZ, HAZARDOUS DUTY RATED, PHILIPS LUMILED LUXEON REBEL DISCREET LED’S WITH 50,000 HOURS STANDARD LIFE, 6500K COLOR TEMPERATURE (COOL WHITE), HOUSING COMPOSED OF MARINE DUTY COPPER FREE ALUMINUM WITH CORRO-FREE EPOXY POWDER COAT END CAPS AND EXTRUDED ALUMINUM BODY, LENS IS HEAT AND IMPACT RESISTANT GLASS (AVAILABLE IN BOTH CLEAR AND FROSTED), REDUNDANT LED DRIVERS, ADJUSTABLE STAINLESS STEEL CEILING MOUNTING BRACKETS AND HARDWARE SOLD SEPARATELY (AVAILABLE BRACKETS FOR WALL OR POLE MOUNTING ALSO AVAILABLE), OPTIONAL ½” NPT OR M20 METRIC CABLE ENTRY, PIGTAIL / CORD IS NOT INCLUDED WITH THIS FIXTURE, CLASS 1 DIVISION 2 RATING, NEMA 4X, IP66, UL LISTED
CONSTRUCTION:
COPPER FREE ALUMINUM HOUSING WITH CORRO-FREE EPOXY POWDER COAT END CAPS AND EXTRUDED ALUMINUM BODY
ELECTRICAL:
100V-277V AC, 50-60HZ, THRU WIRING FOR LINKING FIXTURES TOGETHER IF REQUIRED, OPTIONAL ½” NPT OR M20 METRIC ENTRY
LED’S:
PHILIPS LUMILED LUXEON REBEL DISCREET SERIES LED’S, 50,000 HOURS STANDARD LIFE
KELVIN TEMPERATURE:
6500K
LUMEN OUTPUT:
4380 LUMENS
POWER FACTOR & AMBIENT TEMPERATURE:
>0.9, OPERATING TEMPERATURE -35C TO +55C
LENS:
AVAILABLE WITH CLEAR OR FROSTED HEAT AND IMPACT RESISTANT GLASS
MOUNTING:
ADJUSTABLE STAINLESS STEEL CEILING MOUNT BRACKETS AND HARDWARE SOLD SEPARATELY (AVAILABLE BRACKETS FOR WALL OR POLE MOUNTING ALSO AVAILABLE). BRACKETS ARE ADJUSTABLE ALONG CHANNEL AT REAR OF FIXTURE TO MATCH THE FOOTPRINT OF TRADITIONAL LINEAR FLUORESCENT FIXTURES
WIRING:
STRANDED WIRES WITH THRU WIRING FOR LINKING FIXTURES TOGETHER IF REQUIRED, ½” NPT OR M20 METRIC CABLE ENTRY OPTION
DRIVER:
TWO INVENTRONICS POTTED DRIVERS EACH RUNNING A SINGLE ARRAY, IF ONE DRIVER / ARRAY FAILS THE OTHER ARRAY WILL STAY LIGHTED
CERTIFICATIONS & RATINGS:
CLASS 1, DIVISION 2, GROUPS A, B, C, D
NEMA 4X (MARINE AND WET LOCATIONS)
IP66
UL844 ELECTRICAL FUXTURE HANGERS FOR HAZARDOUS LOCATIONS
UL1598
UL1598A LUMINAIR FOR INSTALLATIONS ON MARINE VESSELS
C22.2 NO. 137
SIZE:
LENGTH: 40.79” (1036MM)
WIDTH: 7.87” (200MM)
DEPTH: 2.64” (67MM) WITHOUT BRACKETS
WEIGHT:
21 LBS (9.5KG)
NOTES: WHEN COMPARED WITH TRADITIONAL LIGHT SOURCES, THE LL48 LUMINAIRE REDUCES THE HIGH MAINTENANCE COSTS ASSOCIATED WITH TRADITIONAL LAMPS BY DELIVERING LONGER LIFE, ENHANCED ENERGY EFFICIENCY, ENVIRONMENTALLY FRIENDLY, LOWERED MAINTENANCE DEMANDS WITH BETTER QUALITY OF LIGHT, UP TO 50 PERCENT MORE ENERGY EFFICIENT THAN 2 X 58 WATT FIXTURES, LINEAR LED CAN WITHSTAND EXTREME VIBRATION THAT WOULD CAUSE TRADITIONAL TECHNOLOGY TO FAIL, NO FILAMENTS OR GLASS LAMPS TO BREAK, SLIM PROFILE WITH MODERN APPEARANCE, NO MERCURY – ELIMINATING COSTLY LAMP DISPOSAL PROGRAMS, SUPERIOR HEAT DISSIPATION AND HAZARDOUS DUTY RATED
