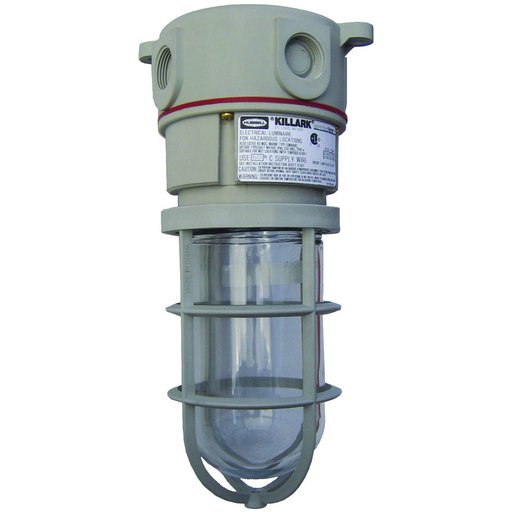

LIGHTING FIXTURE, KILLARK NV2 SERIES, 150W, 120V AC, NON-METALLIC, CEILING MOUNT, HAZARDOUS DUTY / MARINE RATED, UL1598A, IP66, NV2IG15XHG

NV2IG15XHG

MANUFACTURER: KILLARK / HUBBELL


DESCRIPTION:
CEILING MOUNT, NON-METALLIC, HAZARDOUS DUTY, HIGH IMPACT AND CORROSION RESISTANT LIGHTING FIXTURE WITH 4-3/4" ROUND JUNCTION BOX, 120V AC 60HZ, 150 WATT INCANDESCENT LAMP MAX (SUITABLE FOR A19 LED LAMPS), INCLUDES CLEAR TEMPERED GLASS GLOBE (OPTIONAL AMBER, BLUE, GREEN, OR RED GLOBE AVAILABLE), INCLUDES NON-METALLIC GUARD, ALL JUNCTION BOXES SUPPLIED WITH 4 DRILLED AND THREADED 3/4” NPT KO’S, ONE PIECE SILICONE GASKET FOR WEATHERTIGHT SEAL, PORCELAIN LAMPHOLDER, BRASS SCREWS, JUNCTION BOX HAS TWO EARS WITH 3/8" FOR MOUNTING, 2" INSIDE JUNCTION BOX DEPTH, LIGHT BULB NOT INCLUDED.

WARRANTY: 5 YEARS

APPROVALS:
TYPE 4X
CLASS 1 DIVISION 2 GROUPS A, B, C & D
CLASS 2 DIVISION 2 GROUPS F & G
CLASS 3
U.S.C.G.
CSA
ABS APPROVED
CONFORMS TO IP66
TEMPERATURE RATING T3 & T3C

APPLICATIONS:
MARINE & WET ENVIRONMENTS
CLASS 1 DIVISION 2 HAZARDOUS LOCATIONS
CLASS 2 DIVISION 2 HAZARDOUS LOCATIONS
OFFSHORE OIL & GAS PLATFORMS
DAMP, WET OR HOSE DOWN AREAS
DRILLING RIGS
DECK LIGHTING
PETROCHEMICAL
GANTRY & WALKWAY LIGHTING
ARCHITECTURAL SPECIFIC LIGHTING

SIZE:
HEIGHT: 10.84" (BOTTOM OF GUARD TO TOP OF J-BOX)
WIDTH: 4.75"
5.19" BETWEEN J-BOX MOUNTING HOLE EARS

WEIGHT: 5 LBS.
