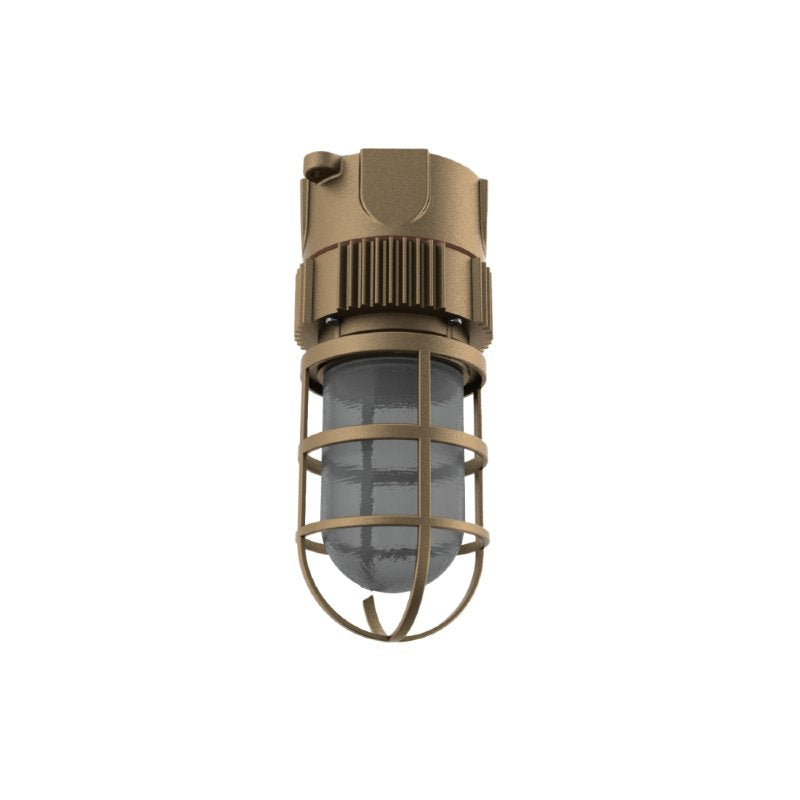

VB-C-17LED-CW-FGC
MANUFACTURER: PHOENIX LIGHTING
PHOENIX P/N: 000076.025
NOTE: THIS PRODUCT HAS A FACTORY DELIVERY TIME OF 3-4 WEEKS
DESCRIPTION:
VP SERIES, LED VAPORPROOF FIXTURE (HAZARDOUS & WET LOCATIONS), DIE CAST BRASS, CEILING MOUNT, 17 WATT (1300 LUMENS) 100-277VAC, 50-60HZ, 5600K COLOR TEMPERATURE (COOL WHITE), LED IS SEALED IN OPTICALLY CLEAR SILICONE, 50,000 HOUR RATED LIFE, CLASS 2 RATED FULLY POTTED DRIVER, 0-10V DIMMING, ALL FIXTURES COME WITH A BRASS GUARD AS STANDARD, MARINE GRADE (316) STAINLESS STEEL EXTERNAL HARDWARE, JUNCTION BOX INCLUDES HARDWARE TO GROUND THE FIXTURE, LONG LIFE SILICONE GASKETS, FROSTED HEAT TREATED GLASS (FGC) STANDARD, OVER VOLTAGE, OVER CURRENT, SHORT CIRCUIT PROTECTION WITH AUTO RECOVERY, ONE ½ INCH NPT OUTLET FOR POWER CONNECTION, IP66 RATED, UL1598/A, ABS, 5 YEAR WARRANTY
CONSTRUCTION:
DIE CAST BRASS WITH LONG LIFE SILICONE GASKETS
GLOBE:
FROSTED HEAT-TREATED GLASS (FGC) OR AMBER HEAT-TREATED GLASS (GHA) AS OPTION
GUARD:
ALL FIXTURES COME WITH A BRASS GUARD
HARDWARE:
MARINE GRADE (316) STAINLESS STEEL EXTERNAL HARDWARE
GROUNDING:
JUNCTION BOXES INCLUDE HARDWARE TO GROUND FIXTURES
LIGHT SOURCE:
17 WATT LED
1300 LUMENS
5600K COOL WHITE
SEALED IN OPTICALLY CLEAR SILICONE
50,000 HOUR RATED LIFE
POWER SOURCE:
100-277VAC, 50-60HZ, 0-10V DIMMING, CLASS 2 RATED DRIVER (FULLY POTTED), OVER-VOLTAGE, OVER-CURRENT, SHORT CIRCUIT PROTECTION WITH AUTO RECOVERY
MOUNTING:
CEILING
OUTLETS:
ONE ½ INCH NPT OUTLET FOR POWER CONNECTION
AMBIENT OPERATING TEMPERATURE:
-30C TO +40C
WARRANTY:
5 YEARS
CERTIFICATIONS / COMPLIANCES / RATINGS:
UL1598 SUITABLE FOR WET LOCATIONS
UL1598A MARINE OUTSIDE TYPE (SALTWATER)
UL844 HAZARDOUS LOCATION
CLASS 1, DIVISION 2 GROUPS A, B, C, D
CLASS 1, ZONE 2
CLASS II, DIVISION 2 GROUPS F, G
CSA C22.2 NO. 137-1981
CSA C22.2 NO. 250.0-08
IP66 RATED
ABS
SIZE:
HEIGHT: 12 IN (305MM)
WIDTH: 4.5 IN (114MM)
MOUNTING: 2 HOLES 5.08 IN (129MM) CENTER TO CENTER
WEIGHT:
10 LBS (4.5KG)
APPLICATION:
TANKERS & CARGO SHIPS
OFFSHORE SERVICE VEHICLES
DRILLING RIGS
TUGBOATS
US COAST GUARD
FERRIES
WALKWAYS, DOORWAYS & STAIRWELLS
EXTERIOR & INTERIOR DECKS
DESIGNED & MANUFACTURED IN THE USA
