DHR80020000
MANUFACTURER: DHR (DEN HAAN ROTTERDAM)
DESCRIPTION:

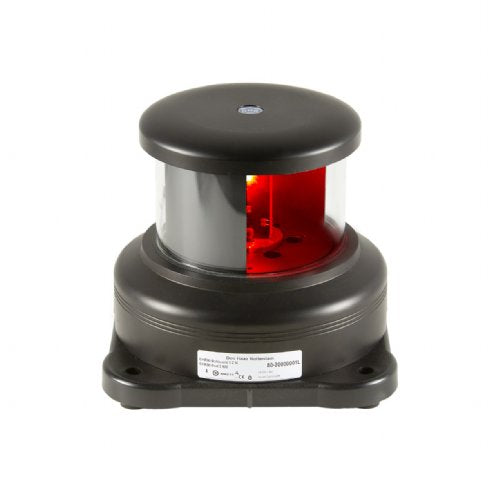

LED NAVIGATION LIGHT, PORT SIDE LIGHT (RED), 80 SERIES, 112.5 DEGREE VISIBLE ARC, 3 NAUTICAL MILE VISIBILITY, 4.5 WATT HIGH POWER RED LED MODULE (MAIN AND SPARE) FOR DOUBLE STACK REDUNDANCY, 20V-30V DC, BLACK HARD ANODIZED SEAWATER RESISTANCE ALUMINUM HOUSING, POM INSULATION SLEEVES TO PREVENT GALVANIC CORROSION, UV RESISTANT BOROSILICATE GLASS LENS, EPOXY POTTED POWER SUPPLY FOR MAXIMUM PROTECTION, THIS FIXTURE IS USER SERVICEABLE IN THE FIELD WITH OEM REPLACEMENT PARTS, NO NOISE INTERFERENCE, 50,000 HOUR LIFE EXPECTANCY
APPLICATIONS:
FOR SEAGOING VESSELS OVER 50 METERS (164 FEET) IN LENGTH
HOUSING:
BLACK, HARD ANODIZED SEAWATER RESISTANT ALUMINUM
LED MODULE:
4.5 WATT RED LED – MAIN AND SPARE
ELECTRICAL:
20V-30V DC
LENS:
UV RESISTANT BOROSILICATE GLASS LENS
WIRING:
2 CABLE HOLES ON SIDES OF BASE, 2 CABLE HOLES ON BOTTOM – UNIT SUPPLIED WITH 2 CABLE GLANDS AND 3 PLUGS SO USER CAN RUN CABLE ACCORDING TO SPECIFIC APPLICATION
VISIBILITY:
3 NAUTICAL MILES
APPROVALS:
MED WHEELMARK (MARINE EQUIPMENT DIRECTIVE)
COLREG72
USCG APPROVED PER ITL
MEETS UL 1104 STANDARDS
MEETS EN 14744 STANDARDS
WATERPROOF IP66 RATED
MANUFACTURED:
MADE IN HOLLAND
NOTE:
THIS FIXTURE IS USER SERVICEABLE IN THE FIELD WITH OEM REPLACEMENT PARTS
ADDITIONAL INFORMATION:
WITH THE DHR80 LED, DHR INTRODUCES A VERSATILE NAVIGATION LIGHT. THE ROBUST DESIGN IS THE IDEAL SOLUTION FOR DEMANDING WORK IN MARINE ENVIRONMENTS. THE DHR80 HAS EXCELLENT VISIBILITY CHARACTERISTICS AND THE INTEGRATED SPARE FUNCTIONALITY GUARANTEES SAFETY AT SEA IN ALL WEATHER CONDITIONS. THE USE OF AUTOMOTIVE LEDS AND THE HIGHEST QUALITY COMPONENTS ASSURES THE MOST DURABLE PRODUCT IN ITS CLASS. INTERFERENCE NOISE DOES NOT ACCUR AND WITH A 50,000 HOUR LIFETIME IT REDUCES MAINTENANCE EXPENSES DRAMATICALLY. THE DHR80 LED IS EASILY SERVICEABLE IN THE FIELD, WHICH MAKES THIS LANTERN AN EXCELLENT CHOICE FOR SECURE AND RESPONSIBLE NAVIGATION AT SEA
WARRANTY:
5 YEAR LIMITED WARRANTY
SIZE:
HEIGHT: 180MM
LENGTH: 200MM
WIDTH: 200MM
LENGTH BETWEEN MOUNTING HOLES: 155MM
WEIGHT:
8.4 LBS IN BOX
