DHR40020000
MANUFACTURER: DHR (DEN HAAN ROTTERDAM)
DESCRIPTION:

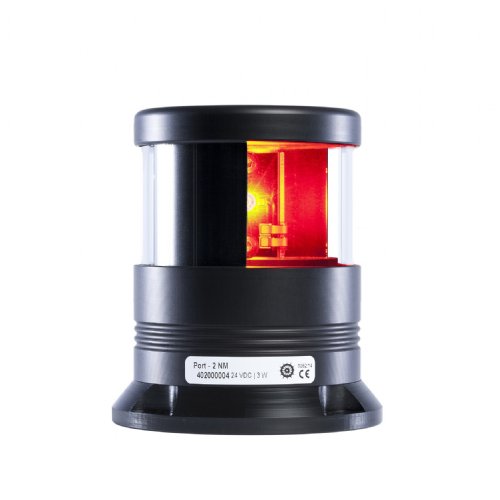

LED NAVIGATION LIGHT, PORT SIDE LIGHT (RED), 40 SERIES, 112.5 DEGREE VISIBLE ARC, 2 NAUTICAL MILE VISIBILITY, 3 WATT HIGH POWER RED LED MODULE, 20V-30V DC, BLACK HARD ANODIZED SEAWATER RESISTANCE ALUMINUM HOUSING, POM INSULATION SLEEVES TO PREVENT GALVANIC CORROSION, UV RESISTANT BOROSILICATE GLASS LENS, EPOXY POTTED POWER SUPPLY FOR MAXIMUM PROTECTION, THIS FIXTURE IS USER SERVICEABLE IN THE FIELD WITH OEM REPLACEMENT PARTS, BASE MOUNT CONFIGURATION (ALSO AVAILABLE IN A SIDE MOUNT), NO NOISE INTERFERENCE, 50,000 HOUR LIFE EXPECTANCY
APPLICATIONS:
FOR VESSELS LESS THAN 20 METERS (65.61 FEET) IN LENGTH
HOUSING:
BLACK, HARD ANODIZED SEAWATER RESISTANT ALUMINUM
LED MODULE:
3 WATT RED LED
ELECTRICAL:
20V-30V DC
LENS:
UV RESISTANT BOROSILICATE GLASS LENS
WIRING:
BASE MOUNT FIXTURE WITH SINGLE CABLE ENTRY INTO THE BOTTOM OF THE FIXTURE
VISIBILITY:
2 NAUTICAL MILES
APPROVALS:
MED WHEELMARK (MARINE EQUIPMENT DIRECTIVE)
COLREG72
USCG APPROVED PER ITL
MEETS UL 1104 STANDARDS
MEETS EN 14744 STANDARDS
WATERPROOF IP66 RATED
MANUFACTURED:
MADE IN HOLLAND
NOTE:
THIS FIXTURE IS USER SERVICEABLE IN THE FIELD WITH OEM REPLACEMENT PARTS
ADDITIONAL INFORMATION:
WITH THE DHR40 LED, DHR INTRODUCES A VERSATILE NAVIGATION LIGHT. THE ROBUST DESIGN IS THE IDEAL SOLUTION FOR DEMANDING WORK IN MARINE ENVIRONMENTS. THE DHR40 HAS EXCELLENT VISIBILITY CHARACTERISTICS GUARANTEEING SAFETY AT SEA IN ALL WEATHER CONDITIONS. THE USE OF AUTOMOTIVE LEDS AND THE HIGHEST QUALITY COMPONENTS ASSURES THE MOST DURABLE PRODUCT IN ITS CLASS. INTERFERENCE NOISE DOES NOT ACCUR AND WITH A 50,000 HOUR LIFETIME IT REDUCES MAINTENANCE EXPENSES DRAMATICALLY. THE DHR40 LED IS EASILY SERVICEABLE IN THE FIELD, WHICH MAKES THIS LANTERN AN EXCELLENT CHOICE FOR SECURE AND RESPONSIBLE NAVIGATION AT SEA
WARRANTY:
5 YEAR LIMITED WARRANTY
SIZE:
HEIGHT: 104MM TO BASE OF BOTTOM CABLE INPUT
LENGTH: 83MM
WIDTH: 83MM
LENGTH BETWEEN MOUNTING HOLES: 52MM
WEIGHT:
5 LBS IN BOX
