MANUFACTURER: AQUA SIGNAL
NOTE: THIS ITEM HAS BEEN DISCONTINUED BY AQUA SIGNAL AND IS NO LONGER AVAILABLE ---- REPLACED BY THE SERIES 75 FIXTURE (PLEASE EMAIL OR CALL REGARDING PRICE AND AVAILABILITY ON THE SERIES 75)
DESCRIPTION:

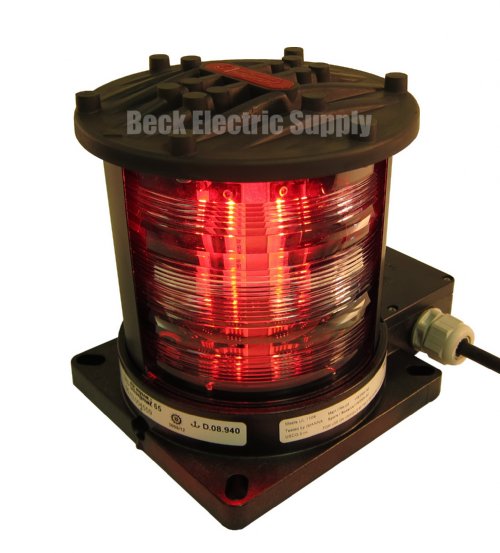

LED NAVIGATION LIGHT, SERIES 65, 3 NAUTICAL MILE VISIBILITY - 6 NAUTICAL MILES ON MASTHEAD FIXTURE, HIGH POWER LED'S, REDUNDANCY BACK UP SYSTEM, 115V-230VAC, 50/60HZ, UP TO 110,000 OPERATING HOUR LIFETIME DEPENDING ON AMBIENT TEMPERATURE, BLACK GLASS FIBRE REINFORCED POLYCARBONATE HOUSING, POLYCARBONATE OPTICS, JUNCTION BOX WITH TWO CABLE ENTRIES, STAINLESS STEEL HARDWARE, WATERPROOF JUNCTION BOX GASKETING, TERMINAL STRIP WITH STAINLESS STEEL SCREWS
NOTE: *** ONLINE PURCHASE OPTIONS ***
PORT (RED) 112.5 DEGREE 3NM AQUA SIGNAL P/N: 3664205000
STARBOARD (GREEN) 112.5 DEGREE 3NM AQUA SIGNAL P/N: 3663105000
STERN (WHITE) 135 DEGREE 3NM AQUA SIGNAL P/N: 3662705000
STERN (YELLOW) 135 DEGREE 3NM AQUA SIGNAL P/N: 3662405000
MASTHEAD (WHITE) 225 DEGREE 6NM AQUA SIGNAL P/N: 3661005000
ADVANTAGES:
UP TO 90% ENERGY SAVINGS VERSES INCANDESCENT BULBS
UP TO 110,000 OPERATING HOURS
SAFETY - NO BULB CHANGE OUTS IN ROUGHT ENVIRONMENTS
SPECIAL DE-ICING FUNCTION - SELF REGULATING PROCESSOR CONTROLLED
RELIABILITY WITH MAIN SYSTEM AND BACK-UP SYSTEM
HEATSINK MANAGEMENT SYSTEM MINIMIZES THE EFFECTS OF LOW AND HIGH AMBIENT TEMPERATURES
APPLICATION:
FOR ALL VESSELS EQUAL TO OR OVER 65 FEET / 20 METERS IN LENGTH. THIS UNIT MAY ALSO BE USED ON INLAND WATERWAYS REGARDLESS OF VESSEL LENGTH
LED:
4 EACH HIGH POWER (PRO LED 1 WATT RED), 4 ADDITIONAL LED'S ON RESERVE SYSTEM
MOUNTED ON ALUMINUM ROD
VISIBILITY:
3 NAUTICAL MILES, 6 NAUTICAL MILES FOR MASTHEAD FIXTURE
HOUSING:
BLACK GLASS FIBRE REINFORCED POLYCARBONATE HOUSING, OTHER COMPONENTS MADE OF NON CORRODING MATERIALS, SEAWATER RESISTANT
ELECTRICAL:
MAIN LIGHTING (UPPER LED ARRAY) AND SPARE LIGHTING (LOWER LED ARRAY) WITH CONNECTION BOX AND 2 X M25 X 1.5 CABLE ENTRY
OPTICS:
CLEAR POLYCARBONATE
POWER / CURRENT CONSUMPTION:
4 WATTS, .04 AMPS
CABLE ENTRY:
POLYAMIDE CORD GRIP FOR CABLE DIAMETER .354-.669 INCHES / 9-17MM
WIRING:
TERMINAL STRIP IN JUNCTION BOX
BROWN = BLACK (HOT / LINE)
BLUE = WHITE (NEUTRAL)
GREEN/YELLOW = GREEN (GROUND)
AMBIENT TEMPERATURE RANGE:
THIS UNIT MAY BE USED WHEN THE AMBIENT TEMPERATURE IS BETWEEN -13F TO 131F OR -25C TO 55C
RATING:
IP66 / IP67
APPROVALS:
MEETS UL1104
CE APPROVAL
CERTIFIED BY US COAST GUARD ACCEPTED INDEPENDENT
LABORATORY TO USCG / IMO COLREGS AND UL 1104 STANDARDS
EC TYPE EXAMINATION (MODULE B)
CERT. - NO.: BSH/4612/6011563/10
EC QUALITY SYSTEM (MODULE D) CERTIFICATE
REGISTRATION NO.: BSH/4613/064/0946/08
STANDARDS:
USCG COLREG 72, ANNEX I/14
EN 14744:2005 AS AMENDED BY CORR. 2006
IEC 60945 ED.4.0, 2002
IMO RESOLUTION A.694(17)
IMO RESOLUTION MSC 253(83)
MARINE EQUIPMENT DIRECTIVE (MED) 96/98/EC
SIZE:
HEIGHT: 8.11" / 206MM
LENGTH: 9.21" / 234MM
WIDTH: 7.80" / 198MM
WEIGHT: 7.28 LBS. / 3.3 KG
