1445201204
MANUFACTURER: AQUA SIGNAL / GLAMOX
DESCRIPTON:

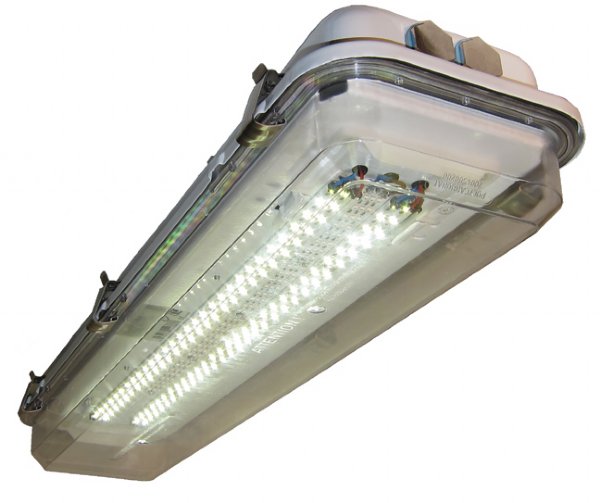

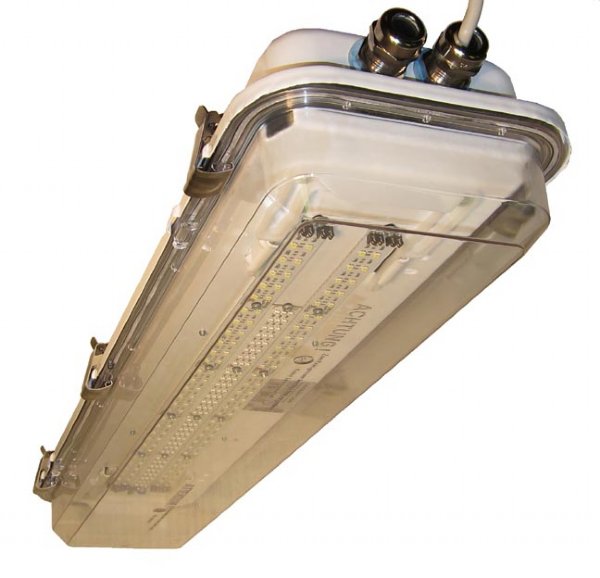

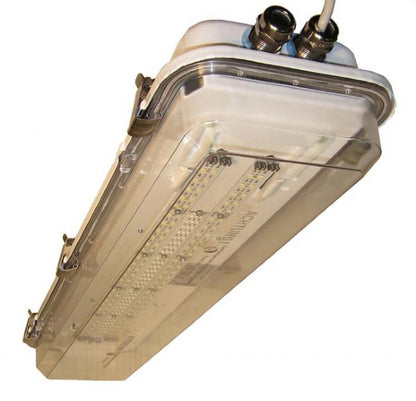

LED MARINE FIXTURE WITH RED LED NIGHT VISION OPTION, 2 FOOT, 110V – 240VAC INPUT VOLTAGE, TWO 10 WATT LED SMD ARRAYS - WHITE (50,000 HOUR LIFE SPAN), ONE 12 WATT SMD ARRAY – RED FOR NIGHT VISION ON THE BRIDGE, 5000 KELVIN, 50 – 60HZ, STAINLESS STEEL AISI 316L BODY, POWDER COATED WHITE RAL9016 IN GLOSS 90, CLEAR UV AND IMPACT RESISTANT POLYCARBONATE DIFFUSER, POLYURETHANE FOAM GASKET MOLDED INTO THE DIFFUSER, STAINLESS STEEL LATCHES / HARDWARE, 2 CABLE ENTRIES PER SIDE, 2 X M24 BRASS CABLE GLANDS PROVIDED, 2 X M20 POLYAMIDE BLIND PLUGS PROVIDED, IP67, MOUNTING PERFORMED THROUGH BOTTOM OF FIXTURE
PLEASE CALL FOR OTHER OPTIONS AVAILABLE WITH THIS LIGHT
NOTE: LED RETROFIT KITS AVAILABLE FOR AQUA SIGNAL FLOURESCENT FIXTURES
ELECTRICAL:
VOLTAGE: 110V – 240VAC
MINIMUM FREQUENCY: 50HZ
MAXIMUM FREQUENCY: 60HZ
BODY:
MATERIAL: STAINLESS STEEL AISI 316L
BODY COLOR: WHITE
PROCESS: POWDER COATED PAINT RAL 9016
OPTICS:
CLEAR
POLYCARBONATE (IMPACT RESISTANT, UV RESISTANT)
LIGHT SOURCE:
LED
2 X 10 WATT SMD ARRAY STRIPS (WHITE)
50,000 HOUR LED LIFE SPAN
COLOR TEMPERATURE: 5000 KELVIN

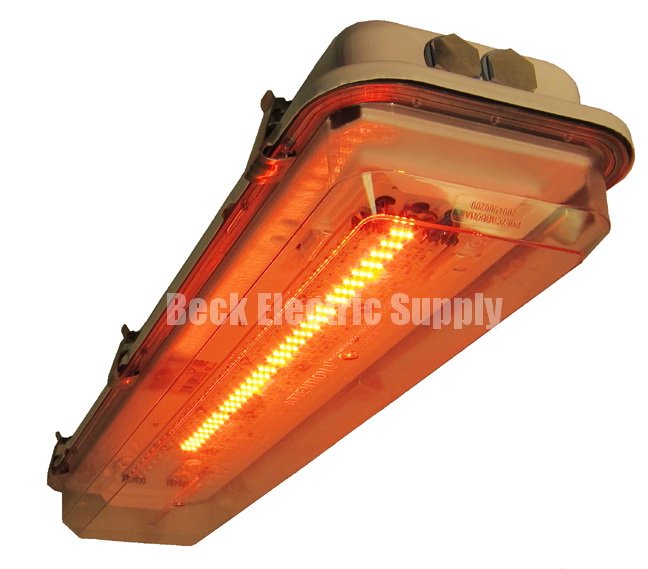

1 X 12 WATT SMD ARRAY FOR NIGHT VISION ON THE BRIDGE (RED)
TERMINATION:
CABLE ENTRIES: 2 PER SIDE
CABLE GLAND: 2 X M24 BRASS
BLIND PLUGS: 2 X M20 POLYAMIDE
THROUGH WIRING: 3-POLE
TECHNICAL DATA:
MAXIMUM AMBIENT TEMPERATURE 45C / 113F
MINUMUM AMBIENT TEMPERATURE -25C / -13F
APPLICATIONS:
MARINE ENVIRONMENTS
HEAVY VIBRATION
ENGINE ROOMS
STORES
PASSAGE WAYS
WORKSHOPS
HOSEDOWN APPLICATIONS
ADVANTAGES:
LOWER POWER CONSUMPTION THAN FLUORESCENT TUBES
NO MAINTENANCE, LIFE TIME > 50,000 HOURS
REDUCES LABOR COSTS DRAMATICALLY
NOT SENSITIVE TO IMPACT, SHOCK OR VIBRATION
NO FLICKER OR HUMMING
NO FLUORESCENT TUBE DISPOSAL FEES
ECO FRIENDLY - NO UV, IR, LEAD, MERCURY, AIR POLLUTION ASSOCIATED WITH FLUORESCENT TUBES
LOW POWER INPUT, HIGH EFFICIENCY OUTPUT
NO NEED TO REPLACE BULBS IN HAZARDOUS LOCATIONS OR CONDITIONS
WIDE RANGE INPUT VOLTAGE 110V – 240VAC
LOWER LIABILITY COSTS
WILL PAY FOR ITSELF WITH ENERGY AND MAINTENANCE SAVINGS
ENVIRONMENTALLY FRIENDLY
WARRANTY: 5 YEARS
DIMENSIONS:
LENGTH: 692MM / 27.25”
WIDTH: 193MM / 7.60”
HEIGHT: 116MM / 4.57”
WEIGHT: 4.06KG / 8.94 LBS.
