RLED-4
MANUFACTURER: PHOENIX LIGHTING
PHOENIX P/N: 010400.200
NORMALLY SHIPS SAME BUSINESS DAY (M-F) IF ORDER IS PLACED BY 2PM PACIFIC TIME
DESCRIPTON:

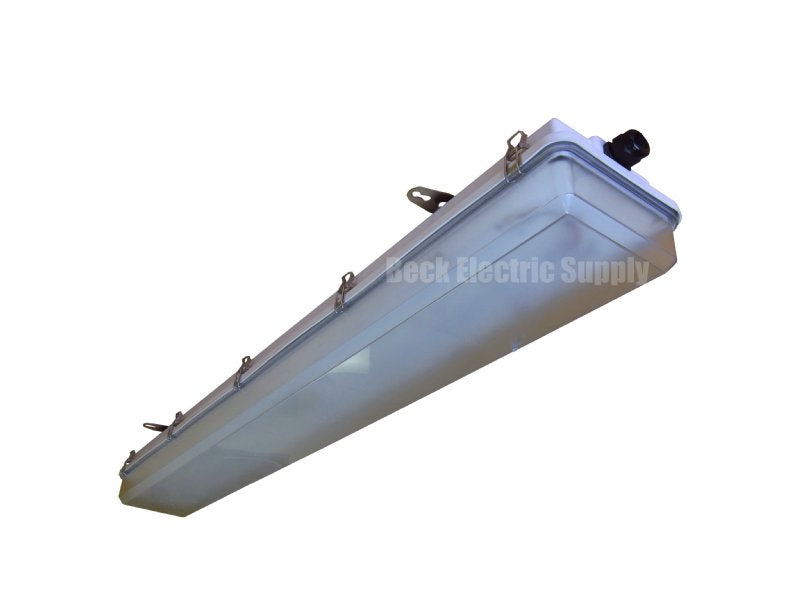

LED MARINE FIXTURE (READILED SERIES), LED SNAPLIGHT, 4 FOOT, 120V-277VAC INPUT VOLTAGE, TWO 24.5 WATT LED SMD ARRAYS (50,000 HOUR LIFE SPAN), 900 - 6400 LUMENS, 4 DIMMING LEVELS 8W - 49W, 5000 KELVIN COLOR TEMPERATURE, 50-60HZ, CORROSION FREE HIGH IMPACT GLASS REINFORCED UV STABILIZED NYLON HOUSING, HIGH IMPACT POLYCARBONATE DIFFUSER WITH MATTE FINISH, POLYURETHANE FOAM GASKET MOLDED INTO THE HOUSING, STAINLESS STEEL LATCHES / HARDWARE / MOUNTING BRACKETS, 3/4 INCH NPT THREADED CABLE ENTRY PER SIDE, IP65 RATED, PHOENIX ITEM NUMBER 010400.200
LED RETROFIT KIT ALSO AVAILABLE FOR YOUR EXISTING PHOENIX LFSB AND PAULUHN FPS 4FT LINEAR FLUORESCENT FIXTURES
RETROFIT KIT P/N: RLED-RFK-4-50K
ELECTRICAL:
VOLTAGE: 120V-277VAC (INPUT VOLTAGE)
50/60HZ
HOUSING:
NYLON, CORROSION FREE, HIGH IMPACT, GLASS REINFORCED, UV STABILIZED
DIFFUSER / LENS:
POLYCARBONATE, HIGH IMPACT, MATT FINISH, TEATHERED TO HOUSING
LIGHT SOURCE:
LED (50,000 HOUR LIFE)
2 X 24.5 WATT SMD ARRAY STRIPS
COLOR TEMPERATURE: 5000 KELVIN
4 DIMMING LEVELS 8W - 49W
LUMENS 900 - 6400 lm
HARDWARE:
CAPTIVE AND NON-MAGNETIC STAINLESS STEEL EXTERNAL HARDWARE
TERMINATION:
CABLE ENTRIES: ONE 3/4 INCH NPT THREADED CABLE ENTRY PER SIDE
THREADED PLUG AND CABLE GLAND PROVIDED
TECHNICAL DATA:
MAXIMUM AMBIENT OPERATING TEMPERATURE 40C / 104F
COMPLIANCES:
UL1598 SUITABLE FOR WET LOCATIONS
UL1598C LED RETROFIT CONVERSION (RETROFIT KITS ONLY)
UL1598A MARINE OUTSIDE TYPE (SALTWATER)
CSA C22.2 NO. 250.0-08
UL 924 EMERGENCY LIGHTING EQUIPMENT
ABS
IP65
CE
APPLICATIONS:
MARINE ENVIRONMENTS
HEAVY VIBRATION
ENGINE ROOMS
STORES
PASSAGE WAYS
WORKSHOPS
HOSEDOWN APPLICATIONS
ADVANTAGES:
LOWER POWER CONSUMPTION THAN FLUORESCENT TUBES
NO MAINTENANCE, LIFE TIME > 50,000 HOURS
REDUCES LABOR COSTS DRAMATICALLY
NOT SENSITIVE TO IMPACT, SHOCK OR VIBRATION
NO FLICKER OR HUMMING
NO FLUORESCENT TUBE DISPOSAL FEES
ECO FRIENDLY - NO UV, IR, LEAD, MERCURY, AIR POLLUTION ASSOCIATED WITH FLUORESCENT TUBES
LOW POWER INPUT, HIGH EFFICIENCY OUTPUT
NO NEED TO REPLACE BULBS IN HAZARDOUS LOCATIONS OR CONDITIONS
WIDE RANGE INPUT VOLTAGE 120V-277VAC
LOWER LIABILITY COSTS
WILL PAY FOR ITSELF WITH ENERGY AND MAINTENANCE SAVINGS
ENVIRONMENTALLY FRIENDLY
WARRANTY: 3 YEAR LIMITED
DIMENSIONS:
LENGTH: 53" / 1346.2MM
WIDTH: 7.6" / 193MM
HEIGHT: 4.9" / 124.5MM
MOUNTING FEET: 36.4 L X 6.8 W (BETWEEN MOUNTING HOLES)
WEIGHT: 10.5 LBS / 4.76 KG
NOTE:
EMB (EMERGENCY BATTERY BACKUP IS AVAILABLE AS AN OPTION)
DIM (DIMMABLE 0-10V AVAILABLE AS AN OPTION)
