FPS4L
MANUFACTURER: PAULUHN / CROUSE-HINDS
NOTE: THIS PRODUCT IS CURRENTLY EXPERIENCING A DELIVERY TIME OF 12 WEEKS

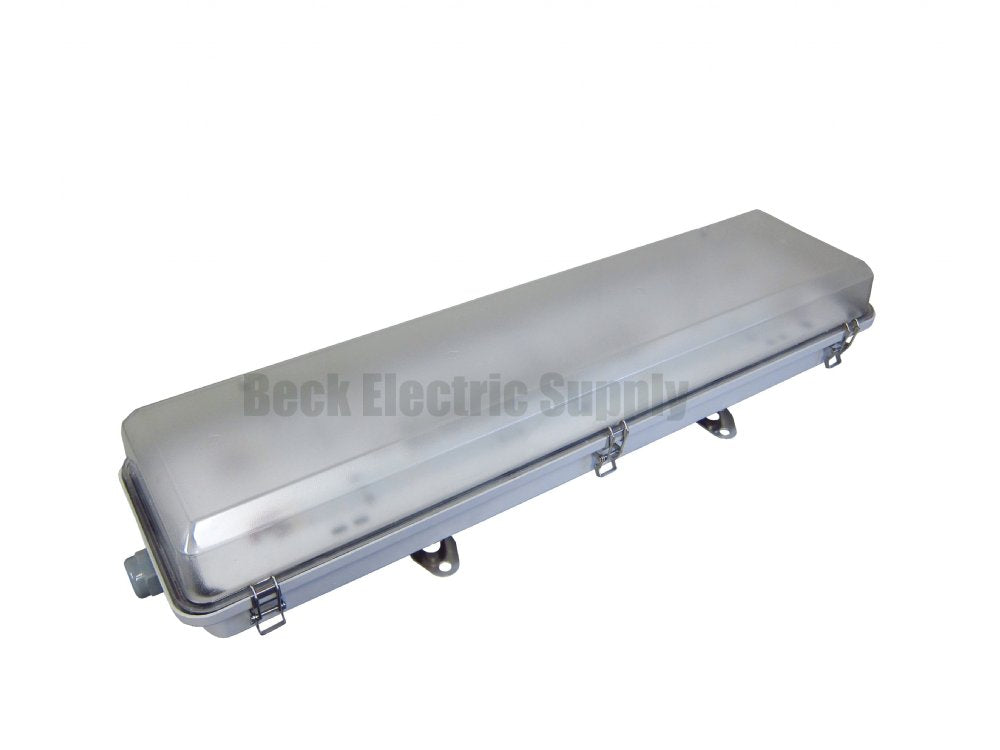

NOTE: PICTURE DEPICTED IS THE 2 FOOT FPS2L, THE 4 FOOT FPS4L IS NOT ILLUSTRATED HERE
DESCRIPTON:
LED MARINE FIXTURE (INTREPID), LED SNAPLIGHT, 48 INCH, 120V–277VAC INPUT VOLTAGE, 77.88 WATTS (60,000 HOUR LIFE SPAN), 4000 KELVIN COLOR TEMPERATURE, 50–60HZ, OSRAM DRIVER, CORROSION FREE HIGH IMPACT FIBERGLASS REINFORCED HOUSING, HIGH IMPACT POLYCARBONATE DIFFUSER WITH MATTE FINISH, POLYURETHANE NEOPRENE GASKET, 316 STAINLESS STEEL LATCHES / HARDWARE / MOUNTING BRACKETS, 3/4 INCH NPT NON-METALLIC THREADED CABLE ENTRY, IP66 RATED, WEGO WIRE NUTS, 5 YEAR WARRANTY
ELECTRICAL:
VOLTAGE: 120V – 277VAC (INPUT VOLTAGE)
50/60HZ
FIXTURE READY TO WIRE WITH PROVIDED WEGO WIRE NUTS
HOUSING:
POLYESTER, CORROSION FREE, HIGH IMPACT, FIBERGLASS REINFORCED, UV STABILIZED
DIFFUSER / LENS:
POLYCARBONATE, HIGH IMPACT, MATT FINISH, TEATHERED TO HOUSING
LIGHT SOURCE:
LED (L70 > 60,000 HOUR LIFE)
77.88 WATTS
COLOR TEMPERATURE: 4000 KELVIN
LUMENS 7040 lm
DRIVER:
OSRAM OPTOTRONIC, 120-277VAC, DIMMABLE
HARDWARE:
316 STAINLESS STEEL HARDWARE (LATCHES, MOUNTING BRACKETS, SCREWS)
TERMINATION:
CABLE ENTRY: ONE ¾ INCH NPT THREADED NON-METALLIC CABLE GLAND,
FEED THROUGH NON-METALLIC CABLE GLANDS OPTIONAL
TECHNICAL DATA:
MAXIMUM AMBIENT OPERATING TEMPERATURE -20C / +50C (-4F / +122F)
MOUNTING OPTIONS:
FLUSH MOUNT (STANDARD), 1-1/4” POLE MOUNT, ROD MOUNT, CORNER WALL MOUNT
LED OPTIONS:
RED LED, BLUE LED
EMERGENCY BACK-UP OPTIONS:
EMERGENCY BATTERY BACK-UP, EMERGENCY BATTERY BACK-UP TEST SWITCH
COMPLIANCES:
IP66
NEMA 4X
UL1598 LUMINAIRE
UL1598A LUMINAIRES FOR MARINE VESSELS
UL924 EMERGENCY LIGHTING EQUIPMENT
CSA 22.2 NO. 250
NST SPLASH ZONE
ABS PENDING
APPLICATIONS:
MARINE ENVIRONMENTS (ENGINE ROOMS, DECKS, PASSAGE WAYS)
HEAVY VIBRATION
FOOD & BEVERAGE PROCESSING FACILITIES
PULP & PAPER PRODUCTION FACILITIES
WATER / WASTEWATER TREATMENT FACILITIES
HOSEDOWN APPLICATIONS
ADVANTAGES:
LOWER POWER CONSUMPTION THAN FLUORESCENT TUBES
NO MAINTENANCE, LIFE TIME > 60,000 HOURS
REDUCES LABOR COSTS DRAMATICALLY
NOT SENSITIVE TO IMPACT, SHOCK OR VIBRATION
NO FLICKER OR HUMMING
NO FLUORESCENT TUBE DISPOSAL FEES
ECO FRIENDLY - NO UV, IR, LEAD, MERCURY, AIR POLLUTION ASSOCIATED WITH FLUORESCENT TUBES
LOW POWER INPUT, HIGH EFFICIENCY OUTPUT
NO NEED TO REPLACE BULBS IN HAZARDOUS LOCATIONS OR CONDITIONS
WIDE RANGE INPUT VOLTAGE 120V – 277VAC
LOWER LIABILITY COSTS
WILL PAY FOR ITSELF WITH ENERGY AND MAINTENANCE SAVINGS
ENVIRONMENTALLY FRIENDLY
WARRANTY: 5 YEAR LIMITED (ASSEMBLED IN USA)
DIMENSIONS:
LENGTH: 52.8” / 134.60 CM
WIDTH: 7.625” / 19.4 CM
HEIGHT: 5.0” / 12.7 CM
MOUNTING FEET: 36.56” L X 6.875” W (BETWEEN MOUNTING HOLES)
WEIGHT: 20 LBS
NOTE: SEE OPTIONS AVAILABLE ABOVE
