1445001206
MANUFACTURER: AQUA SIGNAL / GLAMOX
NOTE:
THIS PRODUCT HAS BEEN DISCONTINUED AND IS NO LONGER AVAILABLE .... PLEASE REFER TO THE GLAMOX/AQUA SIGNAL GKI LED SERIES ALSO AVAILABLE ON OUR WEBSITE
DESCRIPTON:

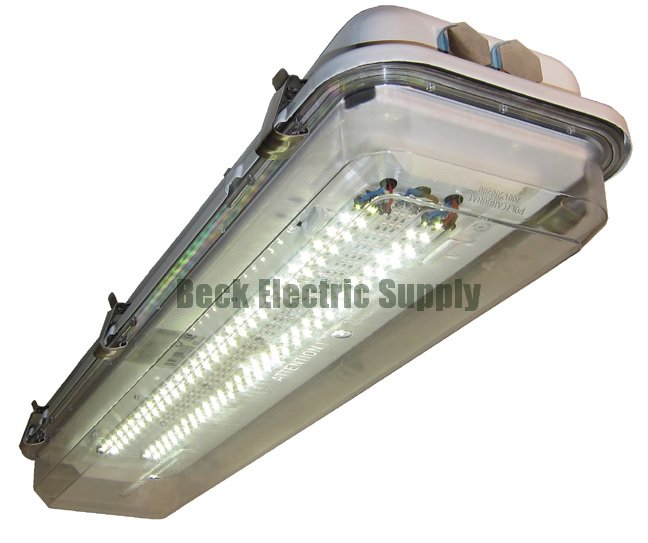

LED MARINE FIXTURE, 24 INCH, 110V AC 240VAC INPUT VOLTAGE, TWO 15 WATT LED SMD ARRAYS (50,000 HOUR LIFE SPAN), 5000 KELVIN, 50 - 60HZ, STAINLESS STEEL AISI 316L BODY, POWDER COATED WHITE RAL9016 IN GLOSS 90, CLEAR UV AND IMPACT RESISTANT POLYCARBONATE DIFFUSER, POLYURETHANE FOAM GASKET MOLDED INTO THE DIFFUSER, STAINLESS STEEL LATCHES / HARDWARE, 2 CABLE ENTRIES PER SIDE, 2 X M24 BRASS CABLE GLANDS PROVIDED, 2 X M20 POLYAMIDE BLIND PLUGS PROVIDED, IP67, MOUNTING PERFORMED THROUGH BOTTOM OF FIXTURE
PLEASE CALL FOR OTHER OPTIONS AVAILABLE WITH THIS LIGHT
NOTE: LED RETROFIT KITS AVAILABLE FOR AQUA SIGNAL FLUORESCENT FIXTURES
ELECTRICAL:
VOLTAGE: 110V AC 240VAC
MINIMUM FREQUENCY: 50HZ
MAXIMUM FREQUENCY: 60HZ
BODY:
MATERIAL: STAINLESS STEEL AISI 316L
BODY COLOR: WHITE
PROCESS: POWDER COATED PAINT RAL 9016
OPTICS:
CLEAR
POLYCARBONATE (IMPACT RESISTANT, UV RESISTANT)
LIGHT SOURCE:
LED
2 X 15 WATT SMD ARRAY STRIPS
50,000 HOUR LED LIFE SPAN
COLOR TEMPERATURE: 5000 KELVIN
TERMINATION:
CABLE ENTRIES: 2 PER SIDE
CABLE GLAND: 2 X M24 BRASS
BLIND PLUGS: 2 X M20 POLYAMIDE
THROUGH WIRING: 3-POLE
TECHNICAL DATA:
MAXIMUM AMBIENT TEMPERATURE 45C / 113F
MINUMUM AMBIENT TEMPERATURE -25C / -13F
APPLICATIONS:
MARINE ENVIRONMENTS
HEAVY VIBRATION
ENGINE ROOMS
STORES
PASSAGE WAYS
WORKSHOPS
HOSEDOWN APPLICATIONS
ADVANTAGES:
LOWER POWER CONSUMPTION THAN FLUORESCENT TUBES
NO MAINTENANCE, LIFE TIME > 50,000 HOURS
REDUCES LABOR COSTS DRAMATICALLY
NOT SENSITIVE TO IMPACT, SHOCK OR VIBRATION
NO FLICKER OR HUMMING
NO FLUORESCENT TUBE DISPOSAL FEES
ECO FRIENDLY - NO UV, IR, LEAD, MERCURY, AIR POLLUTION ASSOCIATED WITH FLUORESCENT TUBES
LOW POWER INPUT, HIGH EFFICIENCY OUTPUT
NO NEED TO REPLACE BULBS IN HAZARDOUS LOCATIONS OR CONDITIONS
WIDE RANGE INPUT VOLTAGE 110V AC 240VAC
LOWER LIABILITY COSTS
WILL PAY FOR ITSELF WITH ENERGY AND MAINTENANCE SAVINGS
ENVIRONMENTALLY FRIENDLY
WARRANTY: 5 YEARS
DIMENSIONS:
LENGTH: 692MM / 27.25 INCHES
WIDTH: 193MM / 7.60 INCHES
HEIGHT: 116MM / 4.57 INCHES
WEIGHT: 4.06KG / 8.94 LBS.
