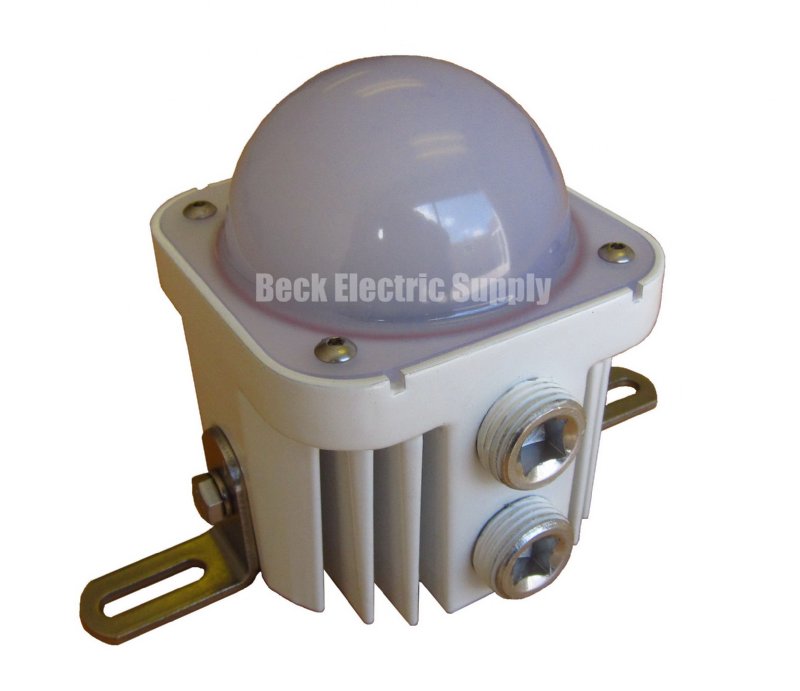

CL-13LED-DC
MANUFACTURER: PHOENIX LIGHTING
PHOENIX P/N: 000082.004
DESCRIPTION:
CUBE LIGHT LED, 13 WATT, 13 -27V DC, 50/60HZ, 5000K COLOR TEMPERATURE, CAST ALUMINUM HOUSING WITH WHITE THERMOSET POWDER COATED FINISH, MARINE GRADE (316) STAINLESS STEEL HARDWARE, IMPACT RESISTANT POLYCARBONATE LENS, 50,000 HOUR RATED LED LIFE WITH CONFORMAL COATING, LED OUTPUT 1000 LUMENS, CRI >80, VERSATILE FLUSH MOUNT STAINLESS STEEL BRACKETS, STRANDED WIRING, PIGTAIL CORD NOT INCLUDED, THROUGH WIRING OPTION STANDARD, THIS UNIT HAS REPLACEABLE COMPONENTS AND CAN BE SERVICED IN THE FIELD, IP66 RATED, UL 1598 WET LOCATIONS, UL 1598A MARINE OUTSIDE (SALTWATER), 3 YEAR WARRANTY
CONSTRUCTION:
CAST ALUMINUM HOUSING WITH WHITE THEROSET POWER COATING
LIGHT SOURCE:
13 WATT, 1000 LUMENS, 50,000 RATED LIFE, CONFORMAL COATED ARRAY
LUMEN OUTPUT:
1000 LUMENS
KELVIN TEMPERATURE:
5000K
HARDWARE:
MARINE GRADE (316) STAINLESS STEEL
LED MODULE:
UV AND IMPACT RESISTANT POLYCARBONATE LENS, LENS IS FIELD REPLACEABLE
AMBIENT OPERATING TEMPERATURE:
-30C DEGREE TO +50C DEGREE (NON-EMB UNITS)
0C DEGREE TO +45C DEGREE (EMB UNITS)
WIRING:
STRANDED WIRES, THRU WIRING OPTION STANDARD, 6 FOOT PIGTAIL CORD NOT INCLUDED WITH FIXTURE
MOUNTING:
FLUSH MOUNT STAINLESS STEEL BRACKETS, FIXTURE CAN BE MOUNTED IN ANY ORIENTATION
WARRANTY:
STANDARD 3 YEAR LIMITED WARRANTY AGAINST DEFECTS IN MATERIAL AND WORKMANSHIP
CERTIFICATIONS AND RATINGS:
IP66
ABS
UL 1598 ORDINARY WET LOCATIONS
UL 1598A MARINE OUTSIDE TYPE (SALTWATER)
CSA C22.2 NO. 250.0
CE
LM79 AND LM80 REPORTS AVAILABLE
OPTIONS:
72” 18/3 PIGTAIL OPTION WITH CORD CONNECTOR (CD)
EMB – EMERGENCY BATTERY BACKUP (EMB1)
HARP MOUNT (HRP-CL)
RAIL MOUNT (RLMT-CL)
WIRE GUARD (WG-CL)
VISOR (VSR-CL)
DEUTSCH CONNECTOR (DTSCH)
SIZE:
HEIGHT: 4.2” (10.7 CM)
WIDTH: 3.4” (8.6 CM) EXLUDING BRACKETS
WIDTH: 6.4” (16.3 CM) INCLUDING BRACKETS
WEIGHT:
2 LBS (.9 KG)
NOTE: THIS FIXTURE IS EXTREMELY ECONOMICAL BECAUSE MOST OF THE COMPONENTS ARE FIELD REPLACEABLE. UNLIKE MOST LED FIXTURES IT IS NOT NECESSARY TO DISCARD THIS FIXTURE WHEN A SINGLE COMPONENT FAILS
