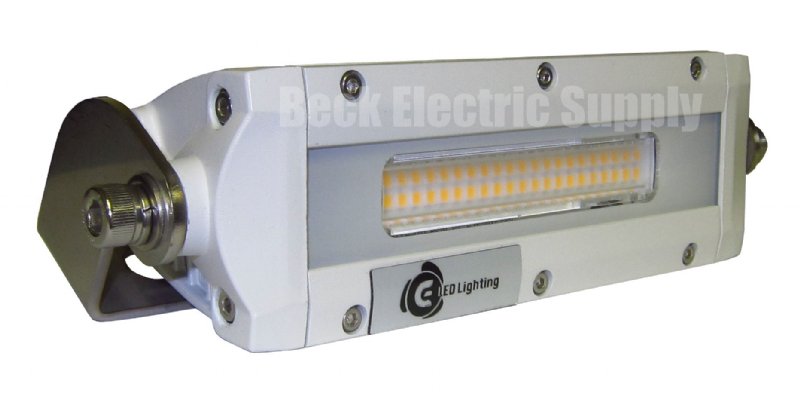

FLLB-010-39WH-HV
MANUFACTURER: E-LED LIGHTING
DESCRIPTION:
LED LIGHT BAR, 10 WATT SMD, 100V-240V AC, 3900K NATURAL WHITE, MARINE DUTY, 1400 LUMENS, 100 DEGREE BEAM ANGLE, HARD ANODIZED ALUMINUM, POWDER COATED, SEAWATER RESISTANT, STAINLESS STEEL HARDWARE, 140 LUMENS PER WATT, 6 METER PIGTAIL POWER CORD ATTACHED TO FIXTURE, IP67
NOTE: AVAILABLE WITH A 360 DEGREE ROTATING BRACKET
WATTAGE:
10 WATTS
COLOR:
3900 KELVIN (NATURAL WHITE)
LENS:
DIFFUSED POLYCARBONATE
INPUT VOLTAGE:
100V – 240V AC, 50-60HZ
LINE = BROWN
NEUTRAL = BLUE
GROUND = GREEN/YELLOW
LUMENS PER WATT:
140 LUMENS PER WATT = 1400 LUMENS TOTAL
BEAM ANGLE:
100 DEGREE
CRI:
>85 CRI
CONSTRUCTION MATERIAL:
ALUMINUM ZL102
FINISH COLOR:
WHITE POWDER COATING
FINISH / COATING:
HARD ANODIZED ALUMINUM WITH SEAWATER RESISTANT POWDER COATING
BRACKET:
HEAVY DUTY STAINLESS STEEL WITH THREE MOUNTING HOLES
HARDWARE:
STAINLESS STEEL HEX SCREWS, WASHERS, BRACKET
MOUNTING:
WALL / CEILING / FLOOR
WIRING:
6 METER PIGTAIL ATTACHED TO FIXTURE - 3 WIRE (LINE = BROWN, NEUTRAL = BLUE, GROUND = GREEN/YELLOW)
IP RATING:
IP67
CERTIFICATIONS:
CE CERTIFICAT NUMBER B-E09110908
EMC DIRECTIVE 204/108/EC
EN 55105: 2006+A1: 2007
EN 61000-3-2:2006+A1: 2007
EN 616000-3-3: 2008
EN 61547: 1995+A1: 2000
COMPLIANT WITH UL1993
COMPLIANT WITH C22.2
SSA CERTIFIED
IN COMPLIANCE WITH IEC60092-306
DIMENSIONS:
WIDTH: 218MM (8.55”) INCLUDING BRACKET
HEIGHT: 78MM (3.05”) INCLUDING BRACKET
DEPTH: 77MM (3.00”)
WEIGHT: 3.5 LBS. (INCLUDING CORD)
