FL-3150
MANUFACTURER: SONARAY
NOTE: CURRENTLY IN STOCK
NORMALLY SHIPS SAME BUSINESS DAY (M-F) IF ORDER IS PLACED BY 2PM PACIFIC TIME
DESCRIPTION:

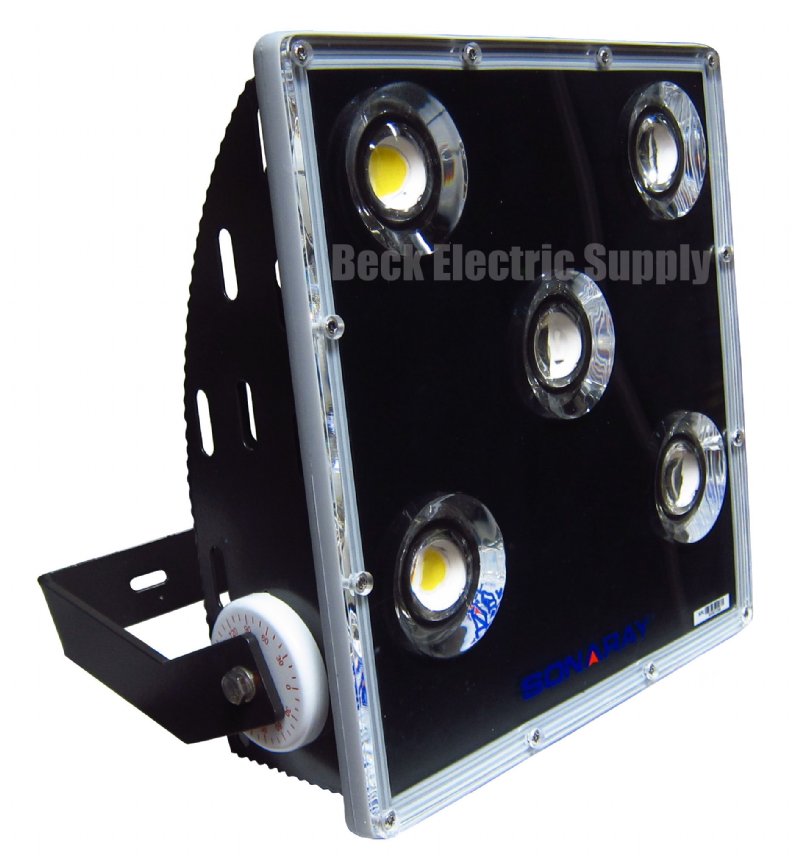

SONARAY DELTA LED FLOODLIGHT, 150 WATT (19,350 LUMENS), 120-277V AC, 50-60HZ, 5000K COLOR TEMPERATURE (COOL WHITE), 90 DEGREE BEAM ANGLE (WIDE), CITIZEN LED CHIP UP TO 129 LUMENS PER WATT, 50,000 HOUR RATED LED LIFE, ALUMINUM HOUSING WITH ANTI-CORROSIVE MARINE GRADE COATING, INTERNAL (BUILT IN) HIGH PERFORMANCE DRIVER, ACRYLIC OPTICAL LENS (HIGH IMPACT IK09), RESILIENT GASKETING TO PREVENT INGRESS, HEAVY DUTY CONSTRUCTION, VAPOR VALVE FOR PRESSURE DIFFERENTIALS, FULLY ADJUSTABLE BRACKET (STANDARD), DARK BRONZE FINISH WITH MARINE GRADE COATING, STAINLESS STEEL HARDWARE, 3FT. PIGTAIL PROVIDED WITH FIXTURE, NON-DIMMABLE
HOUSING & FINISH:
ALUMINUM HOUSING WITH ANTI-CORROSIVE MARINE GRADE COATING (PVF2)
DARK BRONZE FINISH
LIGHT SOURCE:
CITIZEN LED CHIP
150 WATT, UP TO 19,350 LUMENS
UP TO 129 LUMENS PER WATT
CRI > 80
5000K COLOR TEMP (COOL WHITE)
NOTE: ALSO AVAILABLE IN 3000K & 4000K
50,000 HOUR RATED LUMEN PACKAGE LIFE
LENS:
ACRYLIC / POLYCARBONATE OPTICAL PLATE (HIGH-IMPACT)
OPTIC:
WIDE OPTIC BEAM ANGLE 90 DEGREES
NOTE: ALSO AVAILABLE IN 60 DEGREE & 120 DEGREE OPTIC
NOTE: ALSO AVAILABLE GLARE SHIELD TO MITIGATE LIGHT TRESPASS
HARDWARE:
STAINLESS STEEL
MOUNTING BRACKET:
YOLK MOUNT AS STANDARD (FULLY ADJUSTABLE)
NOTE: AVAILABLE WITH SLIP-FITTER OPTION
POWER SOURCE:
120-277V AC, 50-60HZ
DRIVER (INTEGRATED / INTERNAL) BUILT INTO FIXTURE
POWER FACTOR OF 90%+
SURGE PROTECTION UP TO 80 AMPERES
WIRING:
3FT. PIG TAIL PROVIDED WITH FIXTURE
VAPOR VALVE FOR PRESSURE DIFFERENTIALS
AMBIENT OPERATING TEMPERATURE:
-25C TO +45C
-13F TO +113F
WARRANTY:
5 YEAR FACTORY WARRANTY
CERTIFICATIONS / COMPLIANCES / RATINGS:
UL1598A MARINE OUTSIDE TYPE
DLC LISTED
IP65
IK09
SIZE:
WIDTH: 13.39 IN (340MM)
HEIGHT: 12.8 IN (325MM)
DEPTH: 5.55 IN (141MM)
WEIGHT:
11.9 LBS. (5.4KG)
OPTIONS:
AVAILABLE IN 3 COLOR TEMPERATURE OPTIONS 3000K, 4000K & 5000K
AVAILABLE IN 3 OPTIC CONFIGURATIONS (MED 60DEG, WIDE 90DEG & XWIDE 120DEG)
AVAILABLE WITH 2 MOUNTING BRACKETS (YOLK MOUNT – STANDARD, SLIP-FITTER)
