DHR230CSL21
MANUFACTURER: DHR (DEN HAAN ROTTERDAM)
NOTE: THIS UNIT IS CRATED FOR SHIPPING, SO ITS SHIPPING WEIGHT & DIMENSIONS ARE CONSIDERABLY GREATER THAN THE WEIGHT / SIZE OF THE FIXTURE
DESCRIPTION:

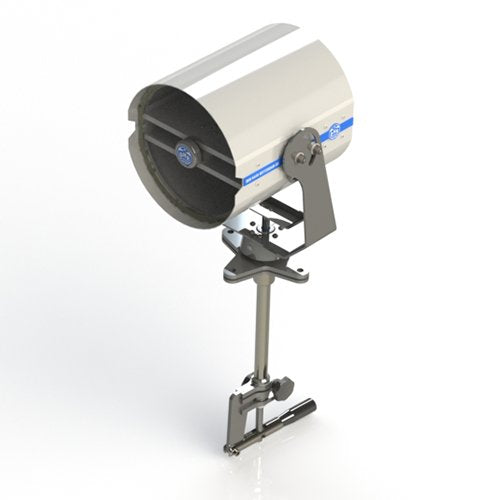

DHR230 LED CABIN CONTROL SEARCHLIGHT
(NOTE: THIS IS A STAND ALONE UNIT AND DOES NOT REQUIRE THE CONTROL PANEL DHRPAN2019NF.
75 WATT LED ARRAY, 5000K COLOR TEMPERATURE, 50,000 HOUR, INPUT VOLTAGE 90V-305VAC, 50-60HZ, SEAWATER RESISTANT ALUMINUM (AW5754) WITH UV RESISTANT POWDER COATING – WHITE RAL9016, SILVER PLATED MIRROR REFLECTOR OPTICAL SYSTEM, HARDENED GLASS LENS, SILICONE / NEOPRENE BLACK SEALS, M25X1.5 CABLE GLANDS, 316L STAINLESS STEEL BRACKETS, IP66
NOTE: THIS SEARCHLIGHT INCLUDES THE WHEELHOUSE CONTROL DHSA10300 FOR MANUAL SEARCHLIGHT
NOTE: THIS SEARCHLIGHT INCLUDES THE PUSH-PULL ROD DHSA20535 AISI 316L FOR MANUAL SEARCHLIGHT
LED PERFORMANCE:
75 WATT LED ARRAY
5000K COLOR TEMPERATURE
50,000 AVERAGE LIFETIME
LUMINOUS INTENSITY: >600,000 CANDELA
LUMINOUS FLUX: 8767 lm
SEARCHLIGHT PERFORMANCE:
RANGE: 775 METERS / 2442 FEET
CLOSE TO THE SAME AS 1000W HALOGEN SEARCHLIGHTS
ELECTRICAL:
90V-305VAC
50-60HZ
CONTROL PANEL INPUT VOLTAGE 19V-32VDC
PERFORMANCE OPTICAL UNIT:
PARABOLIC SILVER PLATED GLASS MIRROR REFLECTOR OPTICAL SYSTEM
AJUSTABLE FOCUS – NO
BEAM ANGLE AT 50%: 6DEG X 6DEG
PERFORMANCE MOTOR UNIT:
TILT: +25DEG / -60DEG
PAN: 340DEG
MAX SPEED LEFT / RIGHT APPROX.: 34DEG PER SECOND
MAX SPEED UP / DOWN APPROX.: 3.2DEG PER SECOND
GENERAL:
FINISH: UV RESISTANT POWDER COATING – WHITE RAL9016
FRONT GLASS: HARDENED GLASS
SEALS: SILICONE / NEOPRENE (BLACK)
CABLE GLAND: M25X1.5
PROTECTIVE VENT IN DRUM
316L STAINLESS STEEL BRACKETS
LARGE VERTICAL DOWNWARD ANGLE
OPERATING TEMPERATURE RANGE: -25C TO +45C (-13F TO 113F)
IP66
SIZE:
HEIGHT: (617MM) (24.3 INCHES)
WIDTH: (277MM) (10.9 INCHES)
WEIGHT:
25 LBS (16KG)
WARRANTY:
1 YEAR
COUNTRY OF MANUFACTURE:
THE NETHERLANDS
USING THE HIGHEST PERFORMANCE MIRROR REFLECTOR ON THE MARKET, A CRISP AND CLEAR SPOT WITH NO VISIBLE STRAY LIGHTS HAS BEEN ENSURED. THE DHR230 IS EQUIPPED WITH A UNIQUE BRACKET DESIGN TO ENABLE AN EXTREME DOWNWARD VERTICAL ANGLE. THIS IS SPECIFICALLY USEFUL FOR CLOSE RANGE TARGETS. POSITIONS ON HIGH STRUCTURES OR FOREMASTS OF INLAND NAVIGATION VESSELS, WHERE HIGH ANGLES OF UP TO 60 DEGREES ARE DESIRED
