BLL-10-30SL-HV
MANUFACTURER: E-LED LIGHTING
DESCRIPTION:

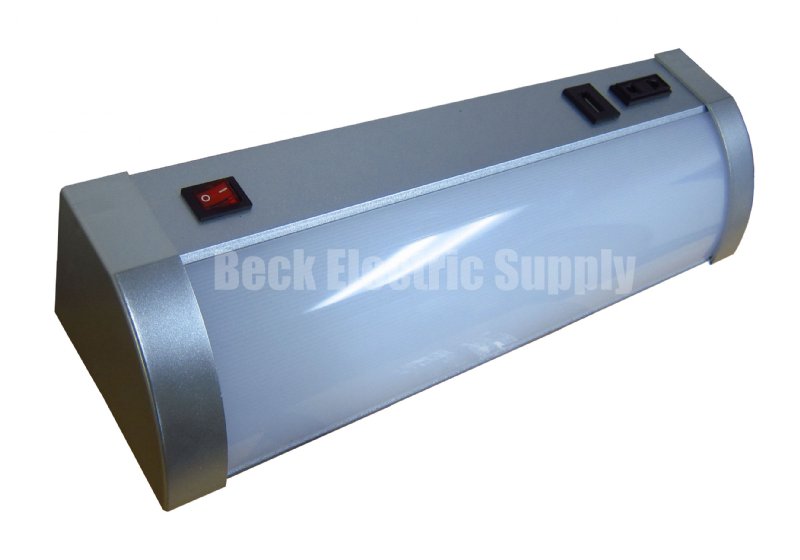

LED BUNK / BERTH LIGHT, 10 WATT, 85V-265V AC, 50-60HZ, 3000K COLOR TEMPERATURE (WARM WHITE), 90 DEGREE BEAM ANGLE, EPISTAR 2835 LED, 100 LUMENS PER WATT = 1000 LUMENS, 80+ CRI, ALUMINUM & POLYCARBONATE CONSTRUCTION, RED ILLUMINATED ON / OFF SWITCH, USB PORT, SURFACE/FLUSH MOUNTING WITH HARDWARE INCLUDED, WIRE TO EXISTING POWER USING HOT, NEUTRAL & GROUND, IP20, RUBBER LINED CONVENIENCE SHELF ON TOP OF FIXTURE, MODERN DESIGN
NOTE: THIS UNIT DOES NOT HAVE A RECEPTACLE (OUTLET) AS PICTURED
LED LIGHT SOURCE:
EPISTAR 2835 LED
WATTAGE:
10 WATTS
COLOR:
3000 KELVIN (WARM WHITE)
LENS:
DIFFUSED POLYCARBONATE
INPUT VOLTAGE:
85V – 285V AC, 50-60HZ
HOT, NEUTRAL & GROUND
LUMENS PER WATT:
100 LUMENS PER WATT = 1000 LUMENS TOTAL
BEAM ANGLE:
90 DEGREE
CRI:
80CRI +
CONSTRUCTION MATERIAL:
ALUMINUM & POLYCARBONATE
FINISH COLOR:
SILVER GREY
MOUNTING:
SURFACE / FLUSH MOUNT (HARDWARE INCLUDED)
WIRING:
6 INCH - 3 WIRE (HOT, NEUTRAL, GROUND) PIGTAIL FROM BACK OF FIXTURE
IP RATING:
IP20
CERTIFICATIONS:
EMC DIRECTIVE 204/108/EC
EN 55105: 2006+A1: 2009
EN 61000-3-2:2006/A2: 2009
EN 616000-3-3: 2008
EN 61547: 1995+A1: 2000
IN COMPLIANCE WITH IEC60092-306
DIMENSIONS:
WIDTH: 347MM (13.66”)
HEIGHT: 93MM (3.66”)
DEPTH: 69MM (2.71”)
WEIGHT: 2.5 LBS.
