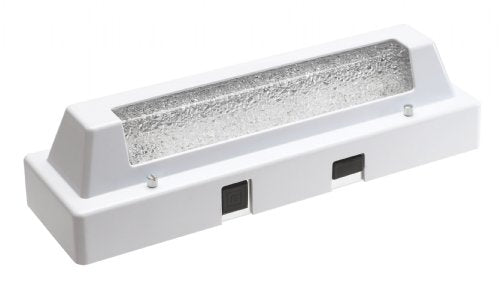

LEDBM-120-WW-LS-LR
MANUFACTURER: PHOENIX LIGHTING
PHOENIX P/N: 1032570
DESCRIPTION:
LED BATHROOM LIGHT, 14 WATT (520 LUMENS), 120VAC, 50-60HZ, 3000K COLOR TEMPERATURE (WARM WHITE), CORROSION RESISTANT MARINE GRADE LOW COPPER CONTENT ALUMINUM ALLOY HOUSING, WHITE ABS MATERIAL COVER, PHILIPS CONFORMAL COATED LED’S, LED DRIVER 120V AC CLASS 2 DRIVER WITH OVER VOLTAGE AND SHORT CIRCUIT PROTECTION WITH AUTO RECOVERY, DIFFUSE ACRYLIC LENS, STAINLESS STEEL EXTERNAL HARDWARE, THIS UNIT DOES NOT HAVE A SWITCH, RECEPTACLE OR USB PORTS
NOTE: THIS FIXTURE DOES NOT HAVE A SWITCH, RECEPTACLE OR USB PORTS AS WITH THE BERTH & MIRROR LIGHT
MARINE BELOW DECK BATHROOM FIXTURE.
DURABLE MARINE GRADE COMPONENTS OFFER RESISTANCE AGAINST CORROSION AND HIGH VIBRATION.
LED TECHNOLOGY INCREASES EFFICIENCY, ELIMINATES MAINTENANCE AND SUPPORTS GREEN INITIATIVES.
HOUSING:
CORROSION RESISTANT MARINE GRADE LOW COPPER CONTENT ALUMINUM ALLOY
COVER:
WHITE ABS MATERIAL
DIFFUSER:
ACRYLIC LENS
LED BOARD:
PHILIPS CONFORMAL COATED LED’S
PERFORMANCE:
14 WATTS OF POWER (520 LUMENS), LED’S PROVIDE EQUAL LIGHT OUTPUT TO 2 X 8 WATT FLUORESCENT TUBES (APPROXIMATELY 23 TOTAL WATTS WITH BALLAST)
LED DRIVER:
120VAC, 50-60HZ, IP66, CLASS 2, SHORT CIRCUIT PROTECTION, OVER VOLTAGE PROTECTION, AUTO RECOVERY
CONVENIENCE OUTLET:
NONE – AVAILABLE ON THE LEDBM-120-WW-USB ONLY
SWITCH:
NONE – AVAILABLE ON THE LEDBM-120-WW-USB ONLY
USB PORTS:
NONE – AVAILABLE ON THE LEDBM-120-WW-USB ONLY
KELVIN TEMPERATURE:
3000K WARM WHITE
HARDWARE:
STAINLESS STEEL EXTERNAL HARDWARE
WARRANTY:
5 YEAR FACTORY WARRANTY
CERTIFICATIONS / COMPLIANCES / RATINGS:
UL / cUL LISTED TO:
UL 1598 SUITABLE FOR DAMP LOCATIONS
UL 1598A MARINE INSIDE TYPE
CSA C22.2 No. 250.0-08
SIZE:
LENGTH: 14.5 IN (36.8CM)
WIDTH: 4.5 IN (11.4CM)
DEPTCH: 3.6 IN (9.2CM)
WEIGHT:
3 LBS. (1.36KG)
