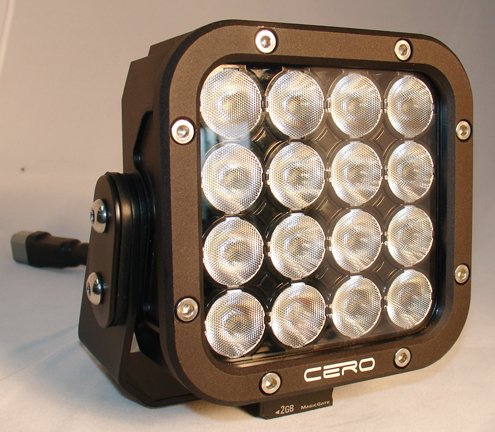

HD16C08510NGD
MANUFACTURER:CERO / JAMESON
DESCRIPTION:
FLOODLIGHT, 85 WATT HIGH OUTPUT LED, OPERATING VOLTAGE 10-32VDC, TYPE II BLACK ANODIZED BODY, 5000K NATURAL WHITE, MARINE DUTY LIGHTING FIXTURE, 16 CREE LED’S, IP68 INGRESS PROTECTION, CNC MACHINED FROM A SINGLE AEROSPACE ALUMINUM BLOCK, BOROSILICATE GLASS LENS, DOUBLE TRUNNION 316 STAINLESS STEEL MOUNTING BRACKET, 316 STAINLESS STEEL HARDWARE, BLANK PIGTAIL EXITS FIXTURE BY WAY OF NICKEL-PLATED BRASS CABLE GLAND, INTEGRATED DUAL ZONE THERMAL MANAGEMENT, REDUNDANT INTELLIGENT DRIVERS
FEATURES:
16 CREE XP-G R5 HIGH EFFICIENCY (90LM/W) PERFORMANCE LEDS
LED EFFICIENCY = 90 LUMENS PER WATT
16 INTERCHANGEABLE HIGH-EFFICIENCY TIR OPTICS
INTEGRATED THERMAL MANAGEMENT
NICKEL-PLATED BRASS CABLE COUPLING ELIMINATES CHEMICAL INGRESS
100% CNC MACHINED 6061-T6 ALUMINUM CHASSIS
316 STAINLESS STEEL HARDWARE
SHOCK MOUNTING SYSTEM ABSORBS HEAVY SHOCK AND VIBRATIONS
HEAVY-DUTY STAINLESS STEEL CUSTOMIZED BRACKETS FOR ANY APPLICATION
TYPE II UV STABLE BLACK ANODIZED FINISH
BOROSILICATE GLASS LENS
TILT (+20 DEGREE TO -40 DEGREE)
SPECIFICATIONS:
POWER CONSUMPTION - 85W MAX
CURRENT DRAW @28VDC - <3.0 AMPS
LIFE EXPECTANCY - 55,000 HRS
RoHS / LEAD-FREE COMPLIANT
INGRESS PROTECTION - IP68
SHOCK ABSORBING CAPACITY - >10G
LIGHT OUTPUT:
RAW: 7,700 LUMENS
EFFECTIVE: 6,300 LUMENS
WARRANTY:
60 MONTHS
SIZE:
HEIGHT: 12.7CM (5.0 INCHES)
WIDTH: 13.9CM (5.5 INCHES)
DEPTH: 6.8CM (2.7 INCHES)
WEIGHT: 2.6KG (2.6 LBS.)
MADE IN THE USA
OPTIONS:
- LED AVAILABLE IN COOL WHITE, WARM WHITE, AMBER & RED/ORANGE
- LIGHT PATTERN OPTIONS - SPOT (11 DEGREE), MEDIUM (26 DEGREE), WIDE (46 DEGREE) & HORIZONTAL ELLIPTICAL (38 DEGREE X 21 DEGREE), VERTICAL ELLIPTICAL (21 DEGREE X 38 DEGREE)
- LENS AVAILABLE IN BOROSILICATE GLASS OR POLYCARBONATE PLASTIC
CORROSION PROTECTION:
STAINLESS STEEL
TYPE 2 ANODIZED ALUMINUM
GOLD PLATED ELECTRONICS
HARDENED GLASS LENSES
NICKEL PLATED STRAIN RELIEFS
PEROXIDE CURED SEALS
PMMA OPTICS
VIBRATION PROTECTION:
SOLID AEROSPACE ALUMINUM CONSTRUCTION
SHOCK ISOLATED MOUNTS
HEAVY DUTY BRACKETS WITH 2 SET SCREWS ON EACH SIDE
INTERNAL SHOCK DAMPING OPTIC ARRAYS
POLYCARBONATE OPTIC SUPPORT
XYZ BALANCED CENTER OF MASS
BOROSILICATE GLASS LENS
FLOATING DESIGN
RELIABILITY:
REDUNDANT INTELLIGENT ELECTRONICS
ISOLATED LED ARRAYS
AUTOMATIC REROUTING CIRCUITRY
ACTIVE THERMAL MANAGEMENT
EMI FILITRATION
TRANSIENT VOLTAGE PROTECTION
OVER VOLTAGE PROTECTION
INDUSTRY LEADING THERMAL & ELECTRONIC EFFICIENCY
NOTE:
AN LED POWER SUPPLY IS NECESSARY FOR THE HD16 IF YOUR INPUT VOLTAGE IS SOMETHING OTHER THAN 10-32VDC. WE RECOMMEND THE (IP67 RATED) EXCELSYS LXV100-024SW FOR INPUT VOLTAGES OF 100 - 277VAC
