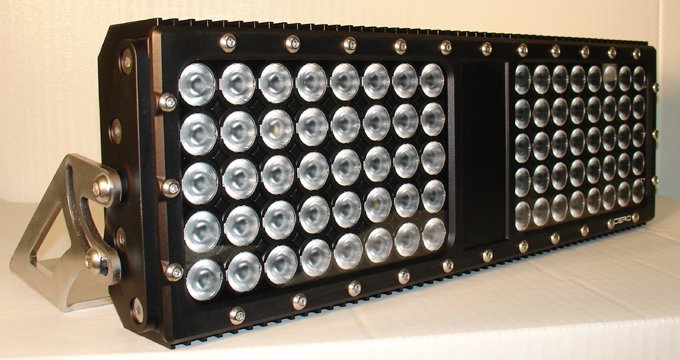

HD80C41518NGD
MANUFACTURER: CERO / JAMESON
DESCRIPTION:
FLOODLIGHT, 415 WATT HIGH OUTPUT LED, OPERATING VOLTAGE 18-32VDC, 5000K NATURAL WHITE, MARINE DUTY LIGHTING FIXTURE, 80 CREE LED’S, IP68 INGRESS PROTECTION, CNC MACHINED FROM A SINGLE AEROSPACE ALUMINUM BLOCK, TYPE II BLACK ANODIZED BODY, BOROSILICATE GLASS LENS, DOUBLE TRUNNION 316 STAINLESS STEEL MOUNTING BRACKET, 316 STAINLESS STEEL HARDWARE, BLANK PIGTAIL EXITS FIXTURE BY WAY OF NICKEL PLATED BRASS CABLE GLAND, INTEGRATED DUAL ZONE THERMAL MANAGEMENT, REDUNDANT INTELLIGENT DRIVERS
FEATURES:
80 CREE XP-G R5 HIGH EFFICIENCY (102LM/W) PERFORMANCE LEDS
LED EFFICIENCY = 102 LUMENS PER WATT
80 INTERCHANGEABLE HIGH-EFFICIENCY TIR OPTICS
INTEGRATED THERMAL MANAGEMENT
PIGTAIL EXITS FIXTURE BY WAY OF NICKEL-PLATED BRASS CABLE GLAND
NICKEL-PLATED BRASS CABLE GLAND ELIMINATES CHEMICAL INGRESS
100% CNC MACHINED 6061-T6 ALUMINUM CHASSIS
316 STAINLESS STEEL HARDWARE
SHOCK MOUNTING SYSTEM ABSORBS HEAVY SHOCK AND VIBRATIONS
HEAVY-DUTY STAINLESS STEEL CUSTOMIZED BRACKETS FOR ANY APPLICATION
TYPE II UV STABLE BLACK ANODIZED FINISH
BOROSILICATE GLASS LENS
TILT (+20 DEGREE TO -70 DEGREE)
SPECIFICATIONS:
POWER CONSUMPTION - 415W MAX
CURRENT DRAW @28VDC - 14.8 AMPS
LIFE EXPECTANCY - 55,000 HRS
RoHS / LEAD-FREE COMPLIANT
INGRESS PROTECTION - IP68
SHOCK ABSORBING CAPACITY - >20G
LIGHT OUTPUT:
RAW: 42,660 LUMENS
EFFECTIVE: 33,480 LUMENS
WARRANTY:
60 MONTHS
SIZE:
HEIGHT: 15.9CM (6.3 INCHES)
WIDTH: 49.5CM (19.5 INCHES)
DEPTH: 7.6CM (3.0 INCHES)
WEIGHT: 6.8KG (15.3 LBS.)
MADE IN THE USA
OPTIONS:
- LED AVAILABLE IN COOL WHITE, WARM WHITE, AMBER & RED/ORANGE
- LIGHT PATTERN OPTIONS - SPOT (11 DEGREE), MEDIUM (26 DEGREE), WIDE (46 DEGREE) & HORIZONTAL ELLIPTICAL (38 DEGREE X 21 DEGREE)
- LENS AVAILABLE IN BOROSILICATE GLASS OR POLYCARBONATE PLASTIC
CORROSION PROTECTION:
STAINLESS STEEL
TYPE 2 ANODIZED ALUMINUM
GOLD PLATED ELECTRONICS
HARDENED GLASS LENSES
NICKEL PLATED STRAIN RELIEFS
PEROXIDE CURED SEALS
PMMA OPTICS
VIBRATION PROTECTION:
SOLID AEROSPACE ALUMINUM CONSTRUCTION
SHOCK ISOLATED MOUNTS
HEAVY DUTY BRACKETS WITH 2 SET SCREWS ON EACH SIDE
INTERNAL SHOCK DAMPING OPTIC ARRAYS
POLYCARBONATE OPTIC SUPPORT
XYZ BALANCED CENTER OF MASS
TEMPERED GLASS LENS
FLOATING DESIGN
RELIABILITY:
REDUNDANT INTELLIGENT ELECTRONICS
ISOLATED LED ARRAYS
AUTOMATIC REROUTING CIRCUITRY
ACTIVE THERMAL MANAGEMENT
EMI FILITRATION
TRANSIENT VOLTAGE PROTECTION
OVER VOLTAGE PROTECTION
INDUSTRY LEADING THERMAL & ELECTRONIC EFFICIENCY
NOTE:
AN LED POWER SUPPLY IS NECESSARY FOR THE HD80 IF YOUR INPUT VOLTAGE IS SOMETHING OTHER THAN 18 - 32VDC. WE RECOMMEND THE (IP67 RATED) EXCELSYS LXV300-024SW FOR INPUT VOLTAGES OF 100 - 277VAC
