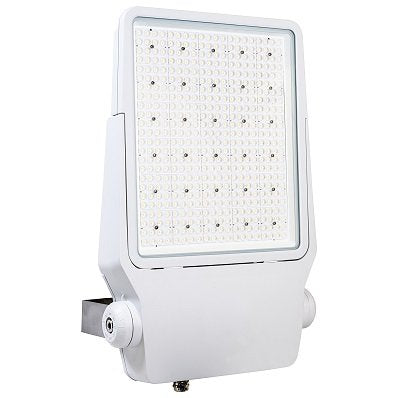

FLNG-300-39WH-06HV
MANUFACTURER: E-LED LIGHTING
DESCRIPTION:
LED FLOODLIGHT – MARINE DUTY (WHITE), 300 WATT, 60 DEGREE BEAM SPREAD (ALSO AVAILABLE WITH 30 AND 90 DEGREE BEAM ANGLES) , 90V-305V AC, 50/60HZ, 3900K COLOR TEMPERATURE (NATURAL WHITE), 3030 LUMILEDS SMD ARRAY, MEANWELL DRIVER HLG-320H-C1050B - DIMMABLE, MARINE GRADE ANODIZED ALUMINUM HOUSING, ZINC RICH PAINT POWDER COATING (WHITE), SOLID GLASS LENS, A4 316 STAINLESS STEEL LOCKABLE MOUNTING HARP 6MM THICK (.23 INCH) 180 DEGREE ADJUSTABLE, STAINLESS STEEL METRIC HEX BOLT HARDWARE, WATERPROOF NON-METALLIC CABLE GLAND M20X1.5, WATERPROOF IP67 RATED GASKET FOR LENS AND DRIVER BOX, PIGTAIL INCLUDED 4.5 FT SO CORD, OVERCURRENT SURGE PROTECTION, IP67
WATTAGE:
300 WATTS
ELECTRICAL:
INPUT 90V-305V AC, 50-60HZ
MEANWELL DIMMABLE DRIVER HLG-320H-C1050B
OVERCURRENT SURGE PROTECTION
LED ARRAY:
3030 LUMILEDS SMD ARRAY, 300 WATT, 50,000 HOUR LIFE EXPECTANCY
LUMENS & CRI:
160 LUMENS PER WATT (48,000 LUMENS), CRI >85
COLOR:
3900 KELVIN TEMPERATURE (NATURAL WHITE)
FIXTURE MATERIAL:
MARINE GRADE ANODIZED ALUMINUM HOUSING
FINISH:
ZINC RICH POWDER COATING (SEAWATER RESISTANT COATING)
LENS:
SOLID GLASS (TEMPERED & HEAT RESISTANT)
MOUNTING:
A4 316 STAINLESS STEEL HARP. 180 DEGREE ADJUSTABLE,
HARP .23 INCH THICK (6MM)
HARDWARE:
A4 316 STAINLESS STEEL METRIC HEX BOLT
WIRING:
4.5 FOOT BLACK SO CORD PIGTAIL INCLUDED WITH FIXTURE – BROWN IS HOT, BLUE IS NEUTRAL, YELLOW WITH GREEN STRIPE IS GROUND/EARTH, WIRES #3 AND #4 ARE FOR THE DIMMING OPTION ON THIS FIXTURE.
WARRANTY:
2 YEARS ON COATING, 60 MONTHS ON ELECTRONICS (LED + DRIVER)
ALL WARRANTIES ARE VOID IF FIXTURE IS INSTALLED WITHOUT ISOLATION PAD AND RINGS .... AND/OR IF THE POWER CORD IS REMOVED AND THE DRIVER HOUSING IS USED AS A JUNCTION BOX
CERTIFICATIONS / RATING:
EMC DIRECTIVE 204/108/EC
EN 55015: 2006+A1: 2007
EN 616000-3-2: 2006/A2: 2009
EN 616000-3-3: 2008
EN 61547: 1995+A1: 2000
IN COMPLIANCE WITH IEC60092-306
IP67
DIMENSIONS:
HEIGHT: 600MM (23.62 INCHES)
WIDTH: 344.5MM (13.56 INCHES)
DEPTH: 91.7MM (3.61 INCHES)
WEIGHT: 25.46 LBS. (11.55 KG)
NOTE: THIS FIXTURE IS ALSO AVAILABLE WITH A 30 DEGREE AND 90 DEGREE BEAM SPEAD OPTION
MARINE / VESSEL APPLICATIONS:
PLEASE NOTE: TO AVOID ELECTROLYSIS, PREMATURE COATING CORROSION AND A VOIDED WARRANTY. THIS FIXTURE IS FURNISHED WITH AN ISOLATION PAD AND ISOLATION RINGS THAT MUST BE UTILIZED DURING INSTALLATION. (ISOLATION PAD INSTALLED BETWEEN FIXTURE BRACKET AND VESSEL AND THE RINGS INSTALLED ON BOTH SIDES OF THE BRACKET BOLTS - SEE ILLUSTRATION SUPPLIED WITH FIXTURE).
