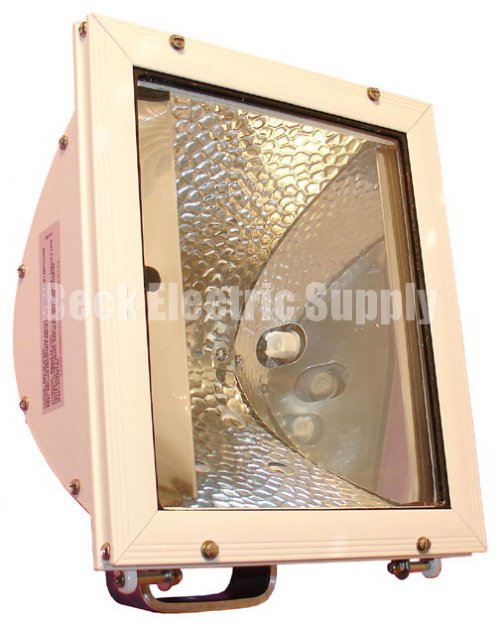

MS500QH (DISCONTINUED)
MANUFACTURER: PHOENIX PRODUCTS
NOTE: DISCONTINUED - RECOMMENDED PHOENIX REPLACEMENT = STURDILED SERIES
DESCRIPTION:
FLOODLIGHT FIXTURE (WHITE), 500 WATT QUARTZ HALOGEN, LAMP WITH 120V 500W OR 24V 250W OR 240V 500W SINGLE CONTACT (LAMP NOT INCLUDED), COMPLETELY SEALED EPDM GASKETED COPPER-FREE ALUMINUM HOUSING WITH HEAT DISSIPATION FINS AND THERMOSET POWDER COATED (WHITE) FINISH, COPPER-FREE ALUMINUM HINGED DOOR WITH STAINLESS STEEL FASTENERS, HIGH PURITY ANODIZED ALUMINUM REFLECTOR, HEAT RESISTANT PORCELAIN LAMP SOCKET WITH SILVER PLATED CONTACTS, LAMP SOCKET IS ADJUSTABLE TO PROVIDE THREE DIFFERENT BEAM PATTERNS, TEMPERED GLASS LENS WITH MOLDED EPDM GASKETING RESISTS HEAT AND SHOCK, INTERLOCK CUT-OFF SWITCH FOR ADDED SAFETY DURING RELAMPING, INCLUDES COPPER-FREE HEAVY DUTY ALUMINUM MOUNTING BRACKET WITH THREE MOUNTING VARIATIONS
APPROVALS:
UL 595 MARINE OUTSIDE TYPE (SALTWATER)
UL 1571 SUITABLE FOR WET LOCATIONS
U.S.C.G. APPROVED
APPLICATIONS:
MARINE AND SALT WATER ENVIRONMENTS
FISHING BOATS
TUGS
DRILL SHIPS AND EXPLORATION VESSELS
ARCHITECTURAL WALL WASHING
HELICOPTER LANDING PADS
WEIGHT: 7 LBS
DIMENSIONS:
WIDTH: 8-13/16"
HEIGHT: 11-7/16"
DEPTH: 6-15/16"
PLEASE CALL FOR OTHER OPTIONS AND ACCESSORIES
