1069016
MANUFACTURER: AQUA SIGNAL
NOTE: THIS ITEM IS NO LONGER AVAILABLE, PLEASE CONTACT US FOR THE LED EQUIVALENT
DESCRIPTION:

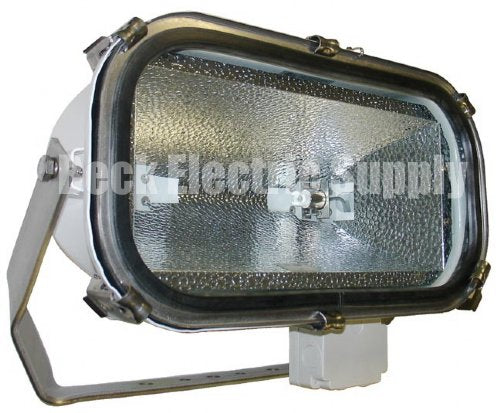

AQUA SIGNAL FLOODLIGHT FIXTURE, 1000 WATT HALOGEN LAMP (NOT PROVIDED WITH FIXTURE), WIDE BEAM (34 DEGREE), FIXTURE ACCEPTS BOTH 120V OR 220V MAX LAMP (LAMP DETERMINES VOLTAGE).
HOUSING: STAINLESS STEEL, DEEP DRAWN, SEAMLESS
FINISH: EPOXY POWDER COATED, WHITE RAL 9016
LENS: CLEAR SAFETY GLASS (EASY REPLACEMENT OF LENS & NO TOOLS REQUIRED FOR RELAMPING
REFLECTOR: HIGHLY POLISHED ALUMINUM, ANODIZED, WIDE BEAM (34 DEGREE)
WIRING: FLEXIBLE WIRING, HEAT RESISTANT TO 250 DEG. C
CABLE ENTRY: EXTERNAL JUNCTION BOX WITH ONE WATERTIGHT BRASS M24X1.5 CABLE GLAND
LAMP: DOUBLE ENDED HALOGEN LAMP 1000 WATT MAXIMUM (NOT INCLUDED)
LAMP BASE: R7s (RSC) (ADJUSTABLE TO FIT 4-11/16", 7-1/2" OR 10-1/16" LAMP)
MOUNTING: ADJUSTABLE STAINLESS STEEL MOUNTING BRACKET WITH FOUR MOUNTING HOLES
HARDWARE: STAINLESS STEEL
PROTECTION: IP67
APPROVALS:
UL 1598
UL 1598A
USCG APPROVED
APPLICATIONS:
MARINE & WET ENVIRONMENTS
VESSEL DECK LIGHTING
DRILL SHIPS AND EXPLORATION VESSELS
COAST GUARD RESCUE VESSELS
FISHING VESSELS
WEIGHT: 15.4 LBS.
DIMENSIONS:
WIDTH: 19.5"
HEIGHT: 12.81"
DEPTH: 8.69"
PLEASE CALL FOR OTHER OPTIONS AND ACCESSORIES
