729B
MANUFACTURER: EATON / CROUSE-HINDS, PAULUHN
NORMALLY SHIPS SAME BUSINESS DAY (M-F) IF ORDER IS PLACED BY 2PM PACIFIC TIME
DESCRIPTION:

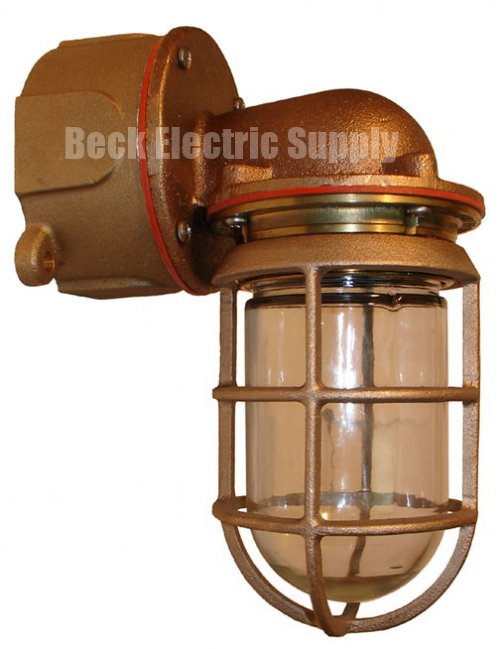

PROGUARD 729/BR
VAPOR PROOF / JELLY JAR
CAST BRONZE BULKHEAD WATERTIGHT LIGHTING FIXTURE WITH 4" ROUND BRONZE JUNCTION BOX, 90 DEGREE ANGLE, 100 WATT LAMP MAX., INCLUDES CLEAR GLASS GLOBE, INCLUDES BRONZE GUARD, ALL JUNCTION BOXES ARE SUPPLIED UNDRILLED BUT ARE SUITABLE FOR UP TO 1" NPT FOUR WAYS, A ONE PIECE SILICONE GASKET PROVIDES A WEATHER TIGHT SEAL WHICH PREVENTS THE INGRESS OF DIRT, MOISTURE AND GAS, PROVIDED WITH A PHENOLIC LAMPHOLDER WITH A NICKEL PLATED COPPER SCREW SHELL, ALL STAINLESS STEEL HARDWARE, JUNCTION BOX HAS TWO EARS WITH 11/32" HOLES FOR MOUNTING, 1-3/4" INSIDE J-BOX DEPTH, LIGHT BULB NOT INCLUDED
WARRANTY: 5 YEARS
APPROVALS:
UL 1598A
CONFORMS TO IP66
MARINE OUTSIDE TYPE SALTWATER
U.S.C.G. APPROVED
ABS APPROVED
PLEASE CALL FOR ADDITIONAL OPTIONS AND ACCESSORIES
APPLICATIONS:
MARINE AND WET ENVIRONMENTS
TANKERS AND CARGO SHIPS
OFFSHORE OIL AND GAS PLATFORMS
DRILLING RIGS
GANTRY AND WALKWAY LIGHTING
DECK LIGHTING
ARCHITECTURAL SPECIFIC APPLICATIONS
SIZE:
HEIGHT: 10-1/4" (BOTTOM OF GUARD TO TOP OF J-BOX)
WIDTH: 6-1/2" (AWAY FROM WALL)
5-1/8" BETWEEN J-BOX MOUNTING HOLE EARS
NOTE: COLORED GLOBES ARE AVAILABLE AND IN STOCK (PLEASE CALL)
WEIGHT: 11 LBS.
