E634FC4
DESCRIPTION:

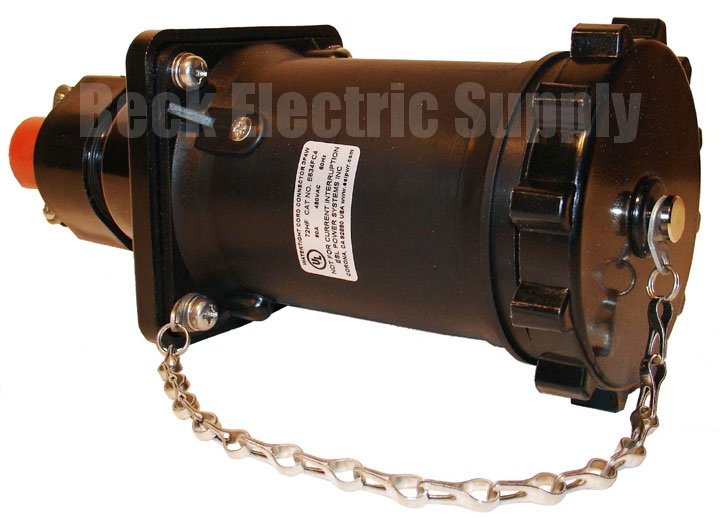

ESL FEMALE CORD CONNECTOR
60AMP 480VAC 3P4W
FEATURES:
WATERTIGHT
NON-METALLIC
HEAVY DUTY DESIGN FOR HARSH MARINE ENVIRONMENT
SNAP COVER ALSO AVAILABLE
UL LISTED
MATERIALS:
HOUSING FRONT - BLACK POLYAMID
HOUSING BACK - BLACK POLYAMID
SCREW COVER - BLACK POLYAMID
GLAND RING - BLACK POLYAMID
GLAND CLAMP - STAINLESS STEEL
INSERT - PHENOLIC
SLEEVES - BRASS
GASKETS - POLYCHLOROPRENE
CABLE GROMMET - POLYCHLOROPRENE
O-RINGS - BUNA-N
RATING ELECTRICAL - 60A 480VAC 60HZ
ENVIRONMENTAL - IPX7 PER IEC 529 / IEC 309-1, TYPE 4X CAPABLE
TERMINALS - 3 PHASE & 1 GROUND, PRESSURE TYPE M6 SCREW
TERMINALS (1 PER POLE) ACCEPTS #8-#6 AWG
(10-16MM 2) CONDUCTORS
WEIGHT: 2.30 LBS EACH
