E634FC2
DESCRIPTION:

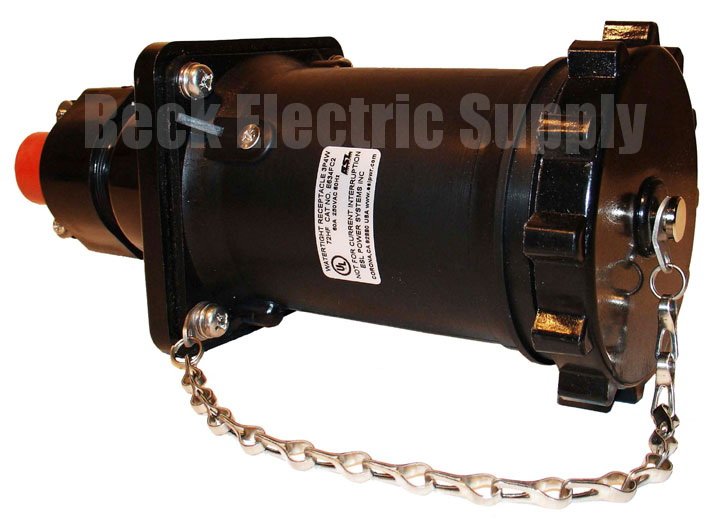

ESL FEMALE CORD CONNECTOR
60AMP 250VAC 3-POLE 4-WIRE
NOTE: 9/18/25 WE CURRENTLY HAVE 12 UNITS IN OUR STOCK -- THIS PRODUCT HAS BEEN DISCONTINUED / OBSOLETED BY THE MANUFACTURER WITH NO REPLACEMENT
FEATURES:
WATERTIGHT WHEN MATED
NON-METALLIC
HEAVY DUTY DESIGN FOR HARSH MARINE ENVIRONMENTS
SCREW COVER
UL LISTED
MATERIALS:
HOUSING - BLACK POLYAMID (NON-METALLIC)
SCREW COVER - BLACK POLYAMID
GLAND RING - BLACK POLYAMID
GLAND CLAMP - STAINLESS STEEL
INSERT - PHENOLIC
CONTACT SLEEVES - SOLID BRASS
GASKETS - POLYCHLOROPRENE
CABLE GROMMET - POLYCHLOROPRENE
O-RINGS - BUNA-N
RATING ELECTRICAL - 60A 240VAC (60HZ)
ENVIORONMENTAL - IPX7 PER IEC 529 / IEC 309-1, TYPE 4X CAPABLE
TERMINALS-3 PHASE & 1 GROUND, PRESSURE TYPE SCREW
TERMINALS (1 PER POLE) ACCEPTS #8-#6 AWG
(10-16MM 2) CONDUCTORS
WEIGHT: 2.40 LBS EACH
