E534FC
NORMALLY SHIPS SAME BUSINESS DAY (M-F) IF ORDER IS PLACED BY 2PM PACIFIC TIME
DESCRIPTION:

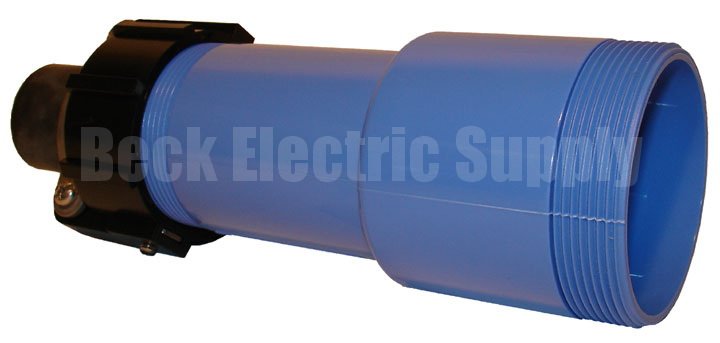

ESL FEMALE CORD CONNECTOR
50AMP 240VAC 3P4W
FEATURES:
WATERTIGHT WHEN MATED
NON-METALLIC
HEAVY DUTY DESIGN FOR HARSH MARINE ENVIRONMENT
MATERIALS:
BODY - BLUE POLYCARBONATE (NON-METALLIC)
GLAND CLAMP - STAINLESS STEEL
CONTACT PINS - BRASS
GLAND RING - BLACK POLYAMID
INNER SLEEVE - BLACK POLYAMID
INSERT - BLACK PHENOLIC
GASKETS - POLYCHLOROPRENE
CABLE GROMMET - NEOPRENE
O-RINGS - BUNA-N
RATINGELECTRICAL - 50A 240VAC (220/240VAC 50/60HZ)
TERMINALS - 3 PHASE & 1 GROUND, PRESSURE TYPE M6 SCREW
TERMINALS (1 PER POLE) ACCEPTS #8-#6 AWG
(4-6MM 2) CONDUCTORS
WEIGHT: .75 LBS EACH
