E333FC1A
NORMALLY SHIPS SAME BUSINESS DAY (M-F) IF ORDER IS PLACED BY 2PM PACIFIC TIME
DESCRIPTION:

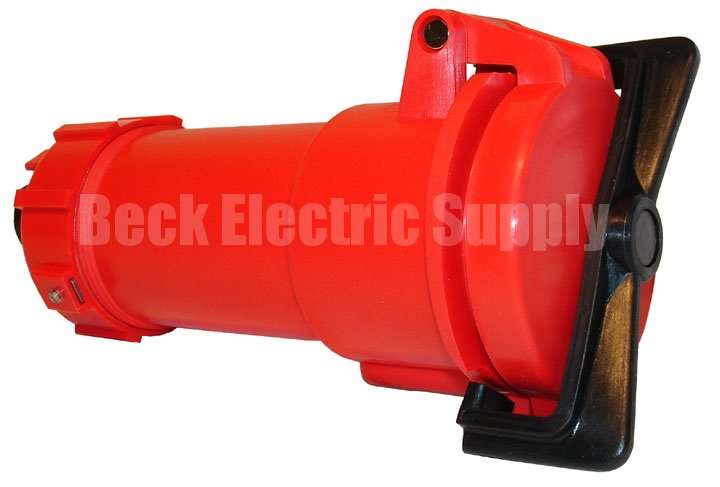

ESL FEMALE CORD CONNECTOR
32AMP 480VAC 3P4W
FEATURES:
CEE-17 3H CONFIGURATION
WATERTIGHT WHEN MATED
NON-METALLIC
HEAVY DUTY DESIGN FOR HARSH MARINE ENVIRONMENT
UL LISTED, CUL LISTED
MATERIALS:
BODY - RED POLYAMID (NON-METALLIC)
GLAND CLAMP - STAINLESS STEEL
CONTACT PINS - BRASS
GLAND RING - RED POLYAMID
LOCK RING - RED POLYAMID
INNER SLEEVE - BLACK PHENOLIC
GASKETS - POLYCHLOROPRENE
CABLE GROMMET- NEOPRENE
O-RINGS - BUNA-N
RATING ELECTRICAL- 32A 480VAC (380/440VAC 50/60HZ)
PER IEC 309-2 (CEE-17 3H)
ENVIRONMENTAL - IPX7 PER IEC 529 / IEC 309-1, TYPE 4X CAPABLE
TERMINALS - 3 PHASE & 1 GROUND, PRESSURE TYPE M6 SCREW
TERMINALS (1 PER POLE) ACCEPTS #12-#8 AWG
(2.5-10MM 2) CONDUCTORS
WEIGHT: 1.20 LBS EACH
