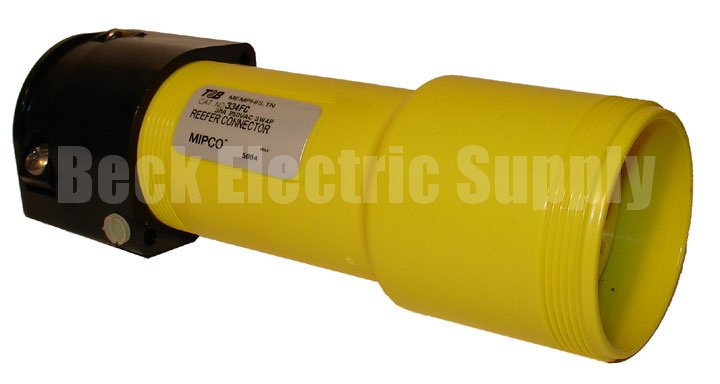

FEMALE CONNECTOR 30A 250VAC MIPCO (334FC)

334FC

MANUFACTURER: MIPCO

DESCRIPTION:
MIPCO FEMALE CORD CONNECTOR
30AMP 250VAC 60HZ 3P4W

FEATURES:
WATERTIGHT WHEN MATED
NON-METALLIC
YELLOW POLYCARBONATE HOUSING (IMPACT, TEMPERATURE & ULTRAVIOLET LIGHT RESISTANT)
INTERNAL O-RING SEALS PROVIDE WATERTIGHT INTEGRITY
WATERPROOF CABLE SEALINGS
SOLID BRASS CONTACT SLEEVES WITH BERYLLIUM COPPER SPRINGS
COLOR CODED YELLOW HOUSING
OPTIONAL BUSHING SIZES AVAILABLE
FAST ASSEMBLY AND WIRING
STAINLESS STEEL HARDWARE

MEETS REQUIREMENTS FOR NEMA 4, 4X & IP67

WEIGHT: .80 LBS EACH
