FHSKITT08LHD
MANUFACTURER: FULHAM
DESCRIPTION:

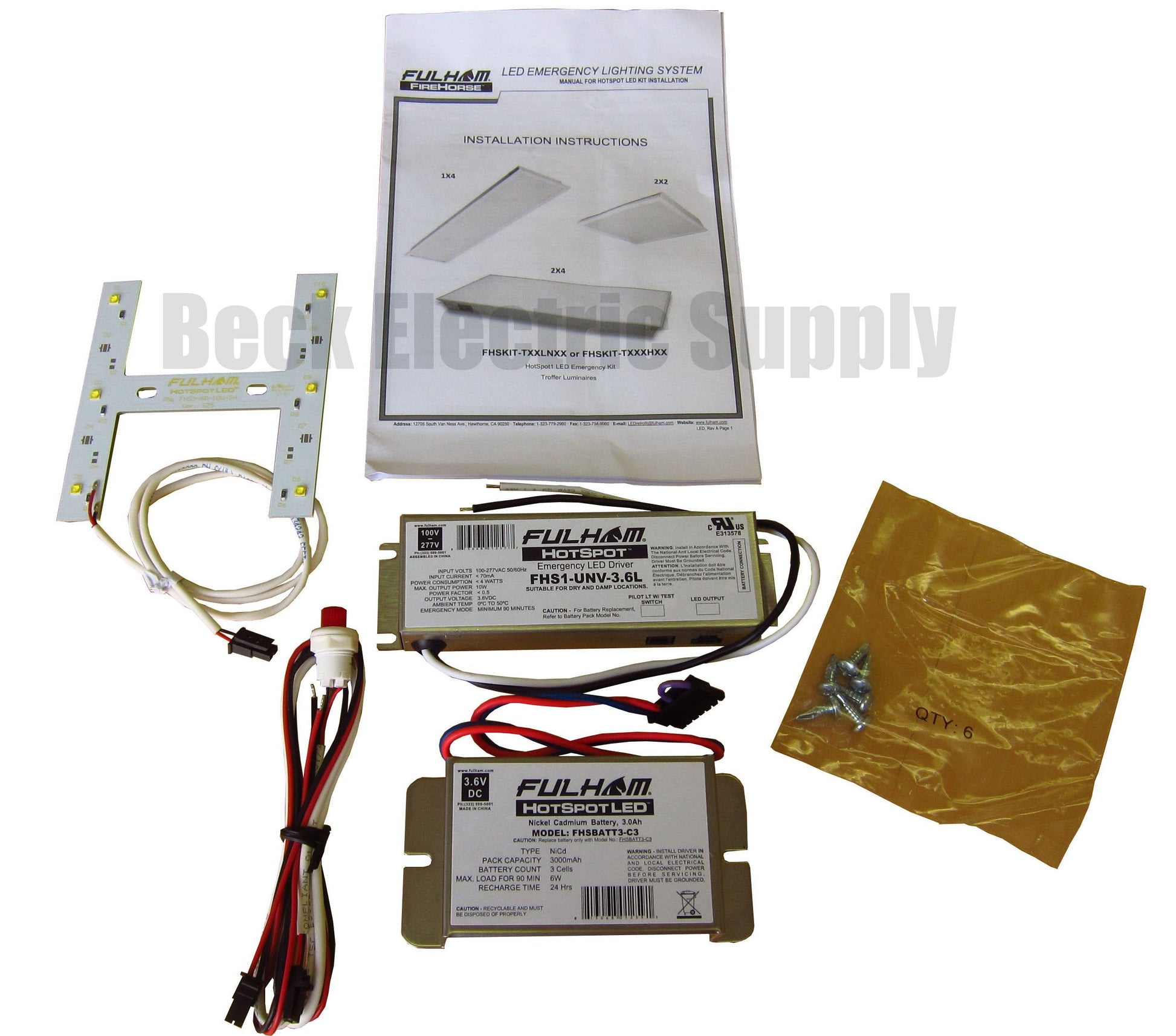

EMERGENCY LED LIGHTING RETROFIT KIT FOR FLUORESCENT OR LED FIXTURES, HOTSPOT1, 8 WATT LED ARRAY, 120V-277VAC INPUT VOLTAGE, 1000 LUMENS, 90 MINUTE ILLUMINATION TIME, INCLUDES DRIVER, BATTERY PACK, H STYLE LED ARRAY, ILLUMINATED TEST BUTTON (RED PILOT LIGHT), MOUNTING HARDWARE INCLUDED, UL RATED, ALL FULHAM HOT SPOT 1 PRODUCTS MEET THE APPLICABLE PERFORMANCE AND SAFETY REQUIREMENTS OF UL1598, UL1598C, UL1310 AND UL924
NOTE:
THIS UNIT IS VERY EASY TO INSTALL AND FULFILLS THE EMERGENCY LIGHTING REQUIREMENTS FOR MOST APPLICATIONS. WE HAVE FOUND IT PARTICULARLY EFFECTIVE IN TROFFER STYLE LUMINAIRES AND LINEAR FLUORESCENT FIXTURES (SOLD ON THIS WEBSITE). THE FULHAM UNIT IS ALSO IDEAL FOR FLUORESCENT FIXTURES OR FLUORESCENT FIXTURES THAT HAVE BEEN RETROFITTED WITH LED TUBES.
SEVERAL SMALL HOLES WILL NEED TO BE DRILLED INTO THE BALLAST TRAY FOR MOUNTING OF THE FULHAM DRIVER, BATTERY PACK AND TEST BUTTON WITH PROVIDED HARDWARE.
THE FULHAM HOTSPOT1 IS NOT INTENDED TO WORK WITH AN ON / OFF WALL SWITCH. THIS IS A STAND ALONE SYSTEM THAT REQUIRES DEDICATED VOLTAGE TO THE CIRCUIT AT ALL TIMES. THIS UNIT IS ONLY INTENDED TO LIGHT DURING AN EMERGENCY POWER OUTAGE OR TEST SITUATION.
SPECIFICATIONS
ELECTRICAL:
INPUT VOLTAGE: 120V-277VAC +/-10%, 47-63HZ
LED ARRAY:
THORO 8 WATT LARGE H CONFIGURATION
SURGE PROTECTION:
C62.41 (TVS)
OVERCURRENT PROTECTION:
FUSE
INPUT CURRENT:
.07A
LUMEN OUTPUT:
1000 LUMENS
INPUT POWER:
<4W
MAXIMUM OUTPUT CURRENT:
2.8 AMP WHEN USED WITH SUPPLIED #FHSBATT3-D3 D CELL BATTERY PACK
OUTPUT VOLTAGE:
3.6 VOLT
OUTPUT SHORT CIRCUIT PROTECTION:
SELF RESETTING PTC
RECHARGE TIME REQUIRED:
24 HOURS
BATTERY TYPE:
D CELL NiCd 3.6VDC
BATTERY CAPACITY:
4Ah
WIRE LENGTH:
BLACK 12 INCHES, WHITE 12 INCHES, BATTERY/LED ARRAY/TEST SWITCH/PILOT LIGHT 24 INCHES
ILLUMINATION TIME:
MINIMUM OF 90 MINUTES
ESTIMATED RUN TIME:
90 MINUTES
RECHARGE TIME REQUIRED:
24 HOURS
TEST BUTTON:
ILLUMINATED TEST BUTTON (RED PILOT LIGHT) FOR MONTHLY TESTING OF THE LED ARRAY
HARDWARE:
6 PHILLIPS PAN HEAD SELF DRILLING SCREWS 8-18X1/2 INCLUDED WITH KIT
AMBIENT TEMPERATURE:
0 DEG C TO 50 DEG C
COMPLIANCES:
UL 1310 / CLASS 2 (UL CLASSIFIED LABEL TO BE AFFIXED TO FIXTURE UPON INSTALLATION OF FULHAM KIT)
ALL FULHAM HOT SPOT 1 PRODUCTS MEET THE APPLICABLE PERFORMANCE AND SAFETY REQUIREMENTS OF UL1598, UL1598C, UL1310 AND UL924
WARRANTY:
5 YEAR LIMITED WARRANTY FROM DATE OF MANUFACTURE
DIMENSIONS:
DRIVER: 5.34" X 1.64"
BATTERY: 5.31" X 2.40"
ARRAY: 5.71" X 3.93"
WEIGHT: 1.58 LBS
