DHPAN2019F
MANUFACTURER: DHR (DEN HAAN ROTTERDAM)
NOTE: FACTORY STOCK
DESCRIPTION:

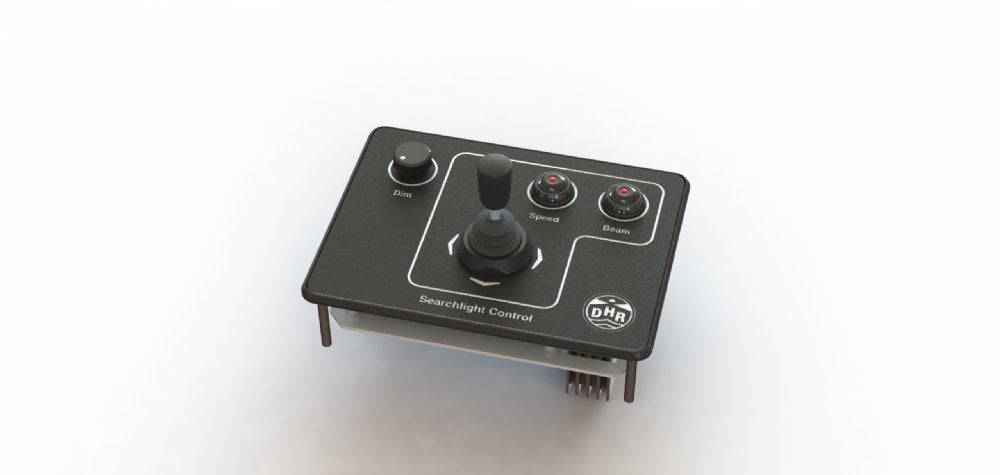

CONTROL PANEL FOR RCN, RCB & RCL SEARCHLIGHTS (FOCUSABLE)
CONTROL:
ON / OFF SWITCH FOR THE LIGHT SOURCE
LED DIMMER
STEP-LESS SPEED CONTROL
CONTROL JOYSTICK
FOCUSABLE
MATERIAL:
ALUMINUM, PAINTED BLACK
ELECTRICAL:
VOLTAGE 24VDC -20/+30%
MAXIMUM WATTAGE 20W
RESETTABLE 3AMP FUSE
INGRESS PROTECTION:
IP65 (FRONT SIDE ONLY)
ROBUST DESIGN
EASY INSTALLATION
EASY OPERATION
HIGH PRECISION MANUFACTURED
DIMENSIONS:
LENGTH: 140MM (5.51 INCHES)
WIDTH: 105MM (4.13 INCHES)
DEPTH: 50MM (1.97 INCHES)
WEIGHT: .6KG (ABOUT 2LBS SHIPPING WEIGHT)
WARRANTY:
1 YEAR
COUNTRY OF MANUFACTURE:
THE NETHERLANDS
NOTE: THE PAN2019F IS A NEW VERSION OF THE WELL KNOWN PAN2011 CONTROL PANEL. THE NEW PANEL FEATURES A LASER CUT FRONT WITH A MATT BLACK FINISH, PANEL LED DIMMER, FULLY BV-SOLAS COMPLIANT. THE PAN2019NF WILL BE USED FOR ALL RCN SERIES AS WELL AS THE 230RCB REMOTE CONTROL LED SEARCHLIGHT
