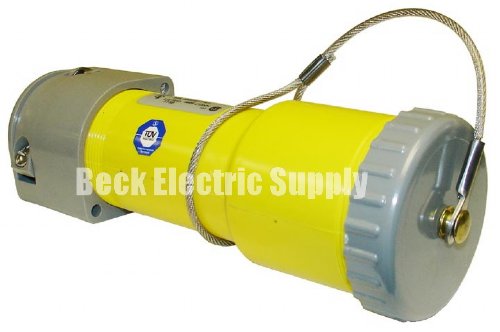

CONNECTOR 60AMP 2P3W 250VAC RUSSELLSTOLL 9C63U2T

9C63U2T

MANUFACTURER: RUSSELLSTOLL

DESCRIPTION:
RUSSELLSTOLL FEMALE CONNECTOR
60AMP 250VAC 2-POLE 3-WIRE
NON-METALLIC
SCREW CAP
DURAGARD
WASHDOWN INDUSTRIAL / LIGHT MARINE

FEATURES:
YELLOW HOUSING FOR EASY IDENTIFICATION
NON-METALLIC
WATERPROOF (WASHDOWN DUTY - HOT OR COLD)
WATERPROOF CABLE SEALING
WATERTIGHT (MATED OR UNMATED)
FLAME SAFETY RATED
VOLTAGE POLARIZED
SAFETY GROUND MAKES FIRST, BREAKS LAST
SELF CLEANING CONNECTIONS
EASY DROP-IN ASSEMBLY INTERIOR
EASY-IN PRESSURE SCREW WIRING TERMINATIONS
UL LISTED
CSA CERTIFIED
IP67

MATERIALS:
HOUSING - YELLOW DuraV HIGH IMPACT THERMOPLASTIC
GLAND NUT - BLACK DuraV HIGH IMPACT THERMOPLASTIC
CONTACT SLEEVES - CDA360 SOLID BRASS
CABLE CLAMP BUSHING - NEOPRENE
O-RINGS - BUNA-N (NITRILE)
HARDWARE - STAINLESS STEEL

WEIGHT: .80 LBS EACH
