ARC6034BC
MANUFACTURER: APPLETON
NORMALLY SHIPS SAME BUSINESS DAY (M-F) IF ORDER IS PLACED BY 2PM PACIFIC TIME
NOTE: CURRENTLY IN STOCK
DESCRIPTION:

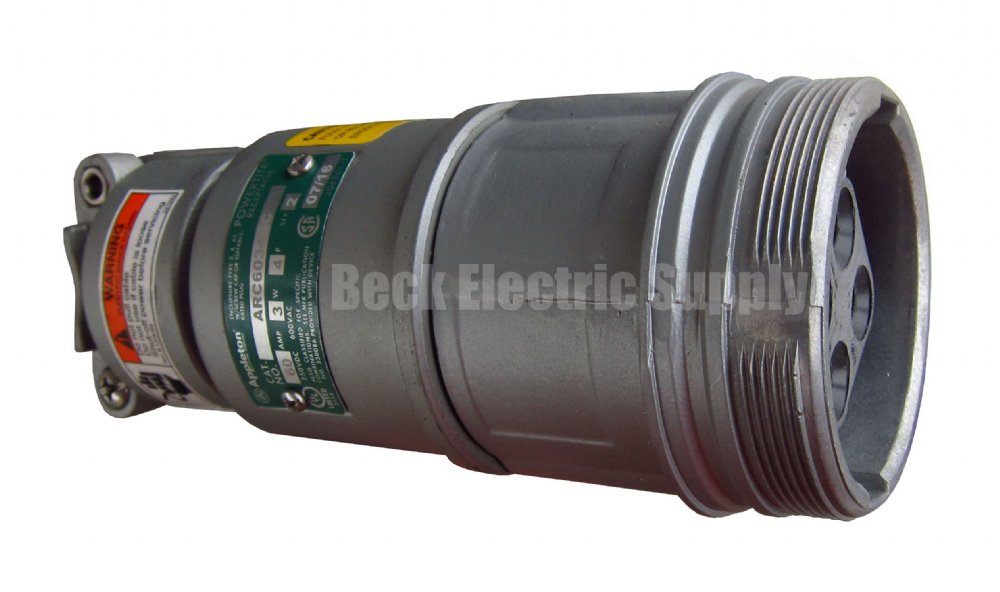

APPLETON CONNECTOR BODY (FEMALE)
60 AMP, 600VAC, 250VDC, 50 - 400HZ, 3-WIRE, 4-POLE
POWERTITE SERIES PIN AND SLEEVE
EPOXY POWDER COATED COPPER FREE ALUMINUM HOUSING
CABLE DIAMETER RANGE .500 - 1.250 INCHES
RATED NEMA 4X WHEN MATED TO PLUG WITH FULLY TIGHTENED CLAMPING RING
FEATURES:
CIRCUIT BREAKING ARCING CONFINED DEEP WITHIN TERMINAL CAVITY
COPPER FREE ALUMINUM HOUSING
GROUND STRAP (USED IN STYLE 2)
STYLE 2 (SHELL AND EXTRA POLE GROUNDING)
WIDELY SPACED AND DEEPLY RECESSED CONTACTS FOR EXTRA SAFETY
NEOPRENE BUSHING (4 SIZES PROVIDED) SEALS OUT WATER AND DUST
SOLID BRASS CONTACTS WITH BERYLLIUM COPPER SPRINGS
PRESSURE WIRE TERMINALS
TERMINAL SCREW GRIPS CONDUCTORS FIRMLY
MECHANICAL REVERSIBLE CABLE CLAMP ALLOWS WIDE CABLE RANGE AND STRAIN RELIEF
APPLICATIONS:
DESIGNED TO SUPPLY POWER TO PORTABLE OR FIXED ELECTRICAL
EQUIPMENT SUCH AS MOTOR GENERATOR UNITS, WELDERS, PUMPS,
COMPRESSORS, CELLULAR RELAY STATIONS AND SIMILAR APPARATUS.
IDEAL FOR USE ON SHIPPING DOCKS, PORTS, AND OTHER SHIP TO SHORE
AND SHORE POWER APPLICATIONS.
SUITABLE FOR USE IN LOCATIONS WHERE A WEATHERPROOF ENCLOSURE
IS REQUIRED
CERTIFICATIONS:
UL LISTED
CSA LISTED
NEMA 4X
WEIGHT: 3.061 LBS
