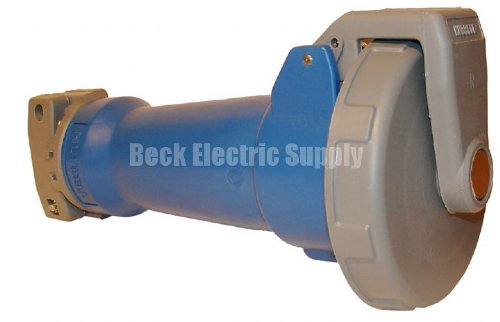

CONNECTOR 30A 250VAC 2-POLE 3-WIRE HUBBELL HBL330C6W

HBL330C6W

MANUFACTURER: HUBBELL

DESCRIPTION:
HUBBELL CONNECTOR
30AMP 250VAC 2-POLE 3-WIRE
PIN AND SLEEVE

FEATURES:
WATERTIGHT
INSULATED NON-METALLIC HOUSING
SUPER TOUGH
NON-CONDUCTIVE
WATERTIGHT NEOPRENE SEALING GLANDS
HEAVY DUTY CABLE GRIPS
SELF ADJUSTING CONTACTS
STAGGERED CONTACTS -OVERSIZED GROUND MAKES FIRST,
NEUTRAL MAKES SECOND, PHASE CONTACT MAKES THIRD.

MATERIALS:
HOUSING - ZYTEL ST801 NYLON
CORD CLAMPS - RYNITE SST35
GLANDS & GASKETS - SOLID NEOPRENE
COVER ARMS - RYNITE SST35
ARM SPRINGS - STAINLESS STEEL
COVERS - RYNITE SST35
COVER SCREW - NICKEL PLATED BRASS
ROTATING SEALING DISC - POLYCARBONATE
CONTACT CARRIER & RETAINER - HIGH IMPACT THERMOSET
PHASE, GROUND SLEEVES - BRASS
SLEEVE SPRING - STAINLESS STEEL
TERMINAL & ASSEMBLY SCREWS - STAINLESS STEEL

UL LISTED
IP67 SUITABILITY
MEETS IEC 60309-1 AND IEC 60309-2

WEIGHT: 1.95 LBS EACH
