DLL14-35K
MANUFACTURER: PAULUHN / COOPER / CROUSE-HINDS
NORMALLY SHIPS SAME BUSINESS DAY (M-F) IF ORDER IS PLACED BY 2PM PACIFIC TIME
DESCRIPTION:

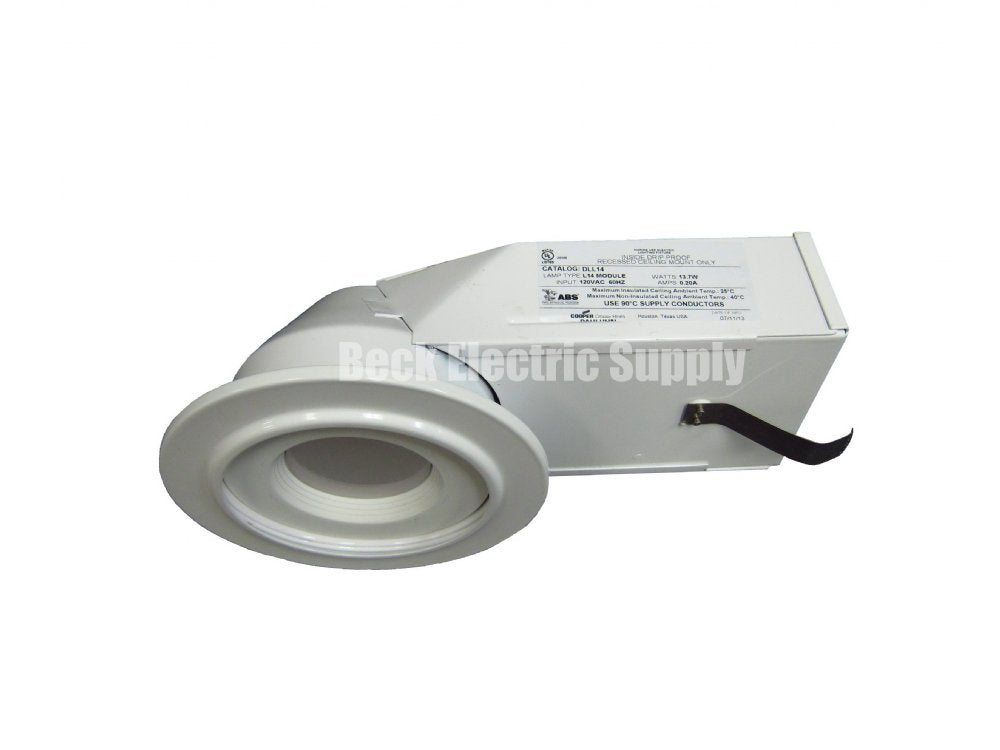

RECESSED CEILING MOUNT LED DOWNLIGHT, 14 WATTS, 3500K WARM WHITE, 120 VAC, 50/60HZ, WHITE POWDER COAT (STANDARD), DIMMING FUNCTIONALITY, MARINE INSIDE DRIP PROOF, PROREC MERIDIAN SERIES
HOUSING: ZINC COATED STEEL WITH ELECTROSTATICALLY APPLIED WHITE POLYESTER POWDER COAT FINISH. COMPONENT TRAY EASILY REMOVED FOR FIELD ACCESS AND WIRING
TRIM RINGS:
ZINC COATED STEEL WITH ELECTROSTATICALLY APPLIED WHITE POLYESTER POWDER COAT FINISH (AVAILABLE OPTIONS: MARINE BRASS FINISH, CHROME PLATED)
LED:
L14 MODULE 14 WATTS, 600 LUMENS, 50,000 HOUR LED LIFE, 3500K WARM WHITE COLOR TEMPERATURE
ENTRIES / KNOCK OUTS:
2 CONCENTRIC ½” OR ¾” NPT KNOCKOUTS
MOUNTING:
RECESSED CEILING TYPE, INTEGRAL BALANCE SUPPORT PROVIDES VIBRATION DAMPENING, LOW PROFILE, 4 INCH DEPTH, ALLOWS FOR INSTALLATION IN CONSTRICTED CEILING VOIDS
TERMINAL BLOCK:
3 POLE
EMERGENCY BATTERY BACKUP:
OPTIONAL REMOTE SELF CONTAINED 90 MINUTE UNIT AVAILABLE
DIFFUSER:
FROSTED ACRYLIC STANDARD (AVAILABLE OPTIONS: RV = RED DR ACRYLIC, BV = BLUE DR ACRYLIC – NIGHT VISION COMPATIBLE, X = TRIM RING WITH CLEAR POLYCARBONATE DIFFUSER, SEALED DIFFUSER)
APPLICATIONS:
RECESSED MOUNT, MARINE INTERIORS, OVERHEAD LIGHTING IN STAIRWELLS AND PASSAGEWAYS, GALLEYS, REMODELING, SHALLOW CEILING CAVITIES
CERTIFICATIONS, APPROVALS & COMPLIANCE:
UL 1598A (LUMINAIRES FOR MARINE VESSELS)
CONFORMS TO IP22
CONFORMS TO IP45 WITH A SEALED DIFFUSER
MARINE INSIDE DRIP PROOF TYPE
ABS
INSULATION CONTACT (IC) RATED FOR CONTACT WITH NONCOMBUSTIBLE MINERAL WOOL INSULATION
MANUFACTURED IN:
HOUSTON TEXAS USA
SIZE:
TRIM OUTSIDE DIAMETER: 7-3/16”
TRIM HEIGHT: ¼”
CUTOUT MOUNTING HOLE: 5-5/8”
LENGTH: 12-7/16”
HEIGHT OVERALL: 4-3/16”
WEIGHT:
3.93 LBS
